Plastic Films Shrinkage Tester ASTM D2732

Plastic Films Shrinkage Tester ASTM D2732

2000.00 - 20000.00 USD ($)/Set

Product Details:

  • Power Supply 220VAC 50Hz / 120VAC 60Hz
  • Specimen Size ≤140 mm x 140 mm Millimeter (mm)
  • Temperature Room temperature ~ 200°C Celsius (oC)
  • Machine Weight 24kg Kilograms (kg)
  • Supply Ability : 10 Set Per Month
  • Click to view more
X

Price And Quantity

  • 2000.00 - 20000.00 USD ($)/Set
  • 1 Set

Product Specifications

  • Room temperature ~ 200°C Celsius (oC)
  • ≤140 mm x 140 mm Millimeter (mm)
  • 220VAC 50Hz / 120VAC 60Hz
  • 24kg Kilograms (kg)

Trade Information

  • Jinan
  • 10 Set Per Month
  • 7 Days
  • Standard Veneer Case
  • All India
  • ISO 9001, CE

Product Description

Shrinkage test, known as linear thermal shrink test or free shrink test, is used for analyzing the effect of temperature on heat shrinkable films made from polyethylene, ethylene copolymers and their mixtures. Basically, shrinking force, contracting force and shrinking ratio can be measured in such determination.

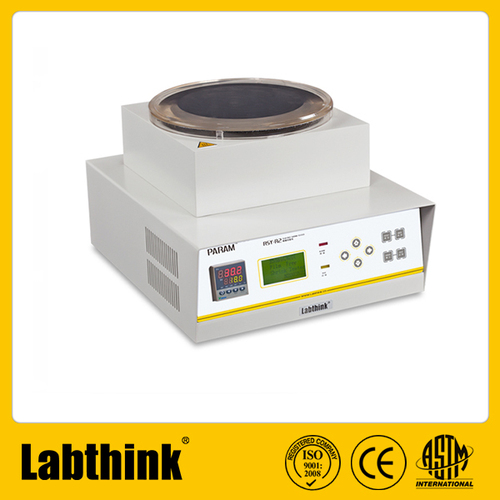

RSY-R2  Plastic Films Shrinkage Tester ASTM D2732 is designed for the heat shrinkage test and size stability test of films in liquid medium at various temperatures.

Features:

  • Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation
  • The instrument is heated through fluid medium, which could provide the stable test environment
  • Automatic timer function to efficiently guarantee the accuracy of test data
  • The instrument is controlled by micro-computer with LCD, PVC operation panel, and menu interface
  • Standard clamp wire mesh support could make the test done smoothly

Technical Specification

Specifications

RSY-R2

Temperature Range

Room temperature ~ 175°C

Temperature Control Accuracy

±0.3°C

Temperature Measuring Accuracy

±2°C

Specimen Size

≤140 mm x 140 mm

Power Supply

220VAC 50Hz / 120VAC 60Hz

Instrument Dimension

440 mm (L) x 370 mm (W) x 310 mm (H)

Net Weight

24 kg
