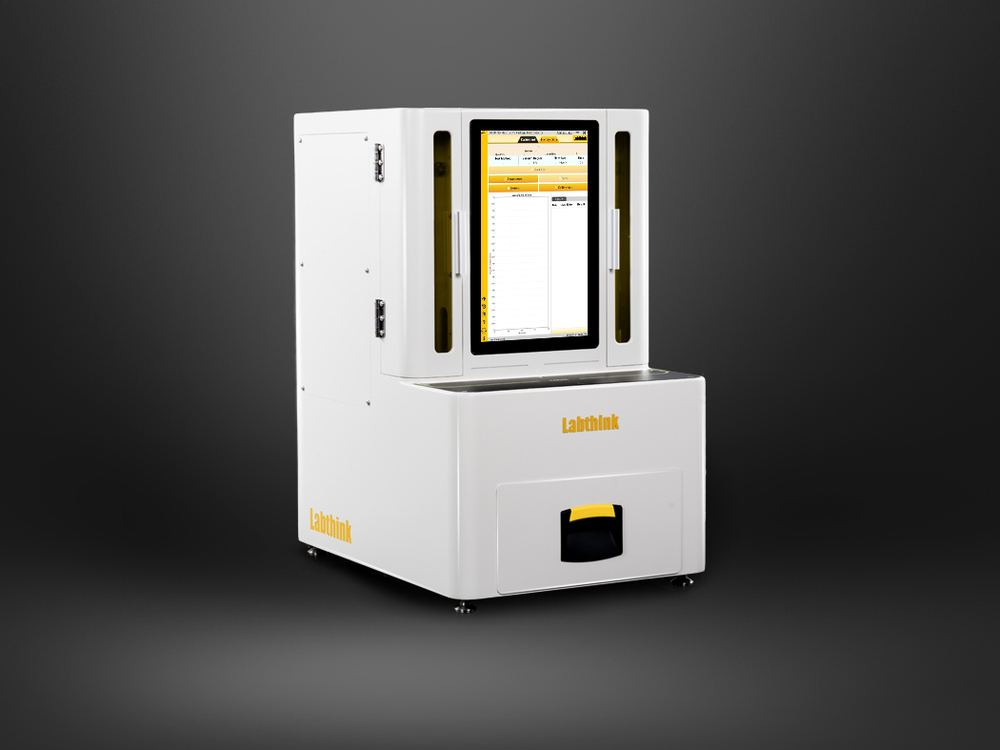

Precise Evaluation of prefilled syringes Seal Integrity with Vacuum Decay Measurement

Product Description

Featuresnote1

Batch Testing

• Equipped with fully-automatic gravity fed sample feeder, which is Labthinks latest scientific and technological achievement that can facilitate continuous testing of 20 to 120 samples.
• A & B dual-channel design can test samples of two different specifications simultaneously.
• The target vacuum degree can be set by the operator to meet testing requirements of different samples.
• Dual methods of vacuum decay and pressure decay provide the flexibility to accommodate various types of package samples.

Precise Data

• Advanced pressure detection technology, using world renowned components for data stability which is not affected by ambient environment.
• Advanced microflow automatic flow control technology that can accurately simulate different sizes of leakage holes without manual adjustment.
• Both the differential pressure transducer and flow meter are traceable to NIST.
• The system can achieve a higher test repeatability of 1um.

Intelligent Control

• 15.6" embedded touch tablet computer with Windows OS.
• New longitudinal interface layout, and easy to use graphic user interface.
• Automatic alarm, automatic capture, automatic collection of unqualified samples.
• The pressure curve is displayed in real time, and the test results are counted automatically.
• Leakage rates are calculated automatically.
• The system is equipped with various sensors as intelligent reminders for safer operation and control.
• Universal printer can be connected for test results output.
• The system features embedded with USB and network ports to facilitate the external access and data transmission of the system, which can be upgraded remotely

Security Compliance

• Verified by compensation and calibration methods.
• The leak tester meets GMP requirements for data traceability and meets the needs of the pharmaceutical industry.
• User operation permission is managed at multiple levels, and the permission content can be configured on demand.
• Electronic signature is designed according to the standard requirements of 21 CFR Part11.

Test Principle

The sample is placed in the sample feeder and automatically delivered into the test cell. The leak rate and other results can be calculated and obtained by analyzing pressure changes measured by the sensor.

Reference Standards

ASTM F2338, YY-T 0681.18, and USP<1207>

Applications

Technical Parameters

Table 1: Test Parameters Note2

Table 2: Technical Specifications

Product Configuration

Note 1: The described product characteristics are subject to the specific annotation of the "Technical Parameters" table.
Note 2: The parameters in the table are measured in the Labthink laboratory by professional operators according to the requirements and conditions of the relevant laboratory environmental standards.
Note 3: Group C test cell can be customized for samples beyond the "Sample Size", but the lower detection limit and test range will change according to the sample size, and the actual delivery shall prevail.
