Tensile strength is the maximum stress that a material can withstand while being stretched or pulled before failing or breaking. It is an important mechanical property of packaging materials. Tensile strength testers are designed for the determination of tensile strength, peel strength, tear resistance of films, sheeting, aluminum foils, etc.
We are manufacturer of tensile strength tester, we can provide you a quanlity range of high quality tensile tester which are used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and low speed unwrapping force as well as other performance of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminium foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.

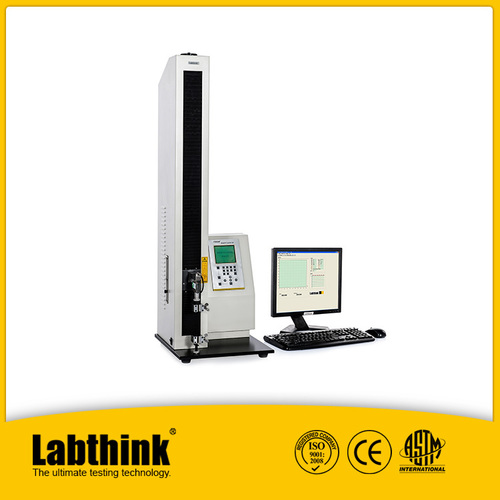

Technical Specification
Specifications | XLW (M) |
---|---|
Load Cell Capacity | 500 N (standard) 30 N, 50 N, 100 N, 200 N (optional) |
750 N, 1000N (Customization Available) | |
Accuracy | 1% FS |
Test Speed | 50, 100, 150, 200, 250, 300, 500 mm/min |
Number of Specimens | 1 |
Specimen Width | 30 mm (Standard Grip) |
Clamping Way | Pneumatic Specimen Clamp |
Stroke | 500 mm |
Pressure of Gas Supply | 0.5 MPa~0.7 MPa (outside of supply scope) |
Port Size | 4 mm PU Tubing |
Instrument Dimension | 450 mm (L) x 580 mm (W) x 1100 mm (H) |
Power Supply | 220VAC 50Hz / 120VAC 60Hz |
Net Weight | 60 kg |
