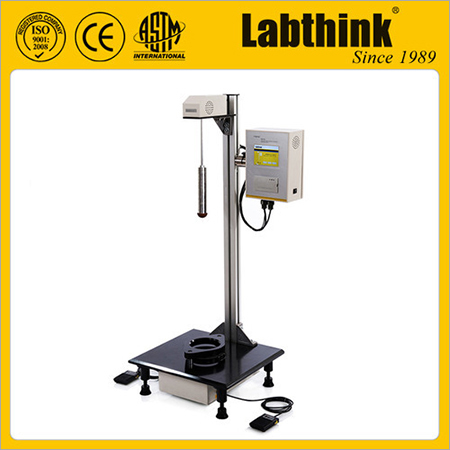

Drop Dart Impact Testing Equipment
2000.00 - 20000.00 USD ($)/Set
Product Details:
- Specimen Size > 150 mm x 150 mm Millimeter (mm)
- Power Supply 220VAC 50Hz / 120VAC 60Hz
- Number of Specimens 1
- Machine Weight 70kg Kilograms (kg)
- Test Stroke 660mm
- Control Mode micro computer control
- Click to View more
X
Drop Dart Impact Testing Equipment Price And Quantity
- 1 Set
- 2000.00 - 20000.00 USD ($)/Set
Drop Dart Impact Testing Equipment Product Specifications
- 70kg Kilograms (kg)
- micro computer control
- 660mm
- > 150 mm x 150 mm Millimeter (mm)
- 1
- 220VAC 50Hz / 120VAC 60Hz
Drop Dart Impact Testing Equipment Trade Information
- Jinan
- 10 Set Per Month
- 7 Days
- Standard Veneer Case
- All India
- ISO 9001, CE
Product Description
BMC-B1 Drop Dart Impact Testing Equipment is designed to measure impact resistance property of plastic films, paper and other packaging materials using free falling dart method.
Principle:
Before starting the test, choose test method, and estimate an initial mass and m. Start the test. If the first specimen fails, decrease the mass of the falling dart by m. If the first specimen is not a failure, increase the mass of the falling dart by m. Continue the test according to this rule. In brief, increase or decrease by m according to whether the former specimen is a failure or not. After 20 specimens, calculate the total number of failed specimens N. If N equals to 10, the test is over. If N is less than 10, add specimens and continue to test until N equals to 10. If N is greater than 10, add specimen and continue the test until the number of non-failure specimens reaches 10. Then the tester calculates the test results automatically according to specific formulas.
Standards:
ISO 7765-1, ASTM D1709, JIS K7124-1
Features:
- 2 test methods of A & B and automatic determination of testing status
- Electromagnetic suspension and automatic release of the falling dart reduce the errors caused by manual operation
- Pneumatic clamping, 2 starting modes of manual and pedal switch and built-in observation light are convenient to the user's operation
Technical Specification
| Specifications | BMC-B1 Drop Dart Impact Testing Equipment |
| Test Method | Method A or Method B is optional |
| Test Range | Method A: 50~2000 g |
| Method B: 300~2000 g | |
| Accuracy | 0.1 g (0.1J) |
| Specimen Clamp | Pneumatic Clamp |
| Pressure of Gas Supply | 0.6 MPa (outside of supply scope) |
| Port of Gas Supply | DIA 8 mm PU Tubing |
| Specimen Size | > 150 mm x 150 mm |
| Power Supply | AC 220V 50Hz |
| Net Weight | 70 kg |
| Instrument Dimension | Method A: 500 mm (L) x 450 mm (W) x 1320 mm (H) |
| Method B: 500 mm (L) x 450 mm (W) x 2160 mm (H) |
|
Basic Applications:
- Plastic films, sheets and composite films e.g. PE preservative films, wrapping films, PET sheets and other food package and heavy packages
- Aluminum foils and aluminum plastic composite films
- Paper and paper board
Extended Applications:
- Test the resistance of the specimen against the falling ball. Mount the specimen on specific clamp for falling ball impact test and select falling ball of certain weight for the impact test. Check the status of the specimen and determine the impact resistance of the specimen
- Impact test of shoulder lining. Mount the shoulder lining specimen to the specified clamp and select falling dart of certain weight for impact test. Check the status of the specimen and determine the impact resistance of the shoulder lining specimen.
