Air Permeability Testing Machine

Air Permeability Testing Machine

5000.00 - 50000.00 USD ($)/Set

Product Details:

  • Test Range 0 ~ 1000 Pa / 0 ~ 30 L/min
  • Specimen Size Method A: 52 mm x 52 mm Method B:Φ12 mm ≤ D(diameter) ≤ Φ71 mm Millimeter (mm)
  • Number of Specimens 1
  • Material Automotive Interiors
  • Dimension(L*W*H) 502 mm (L) x 334 mm (W) x 298 mm (H) Millimeter (mm)
  • Weight 27kg Kilograms (kg)
  • Usage Textile and Fabrics Testing Instruments
  • Supply Ability : 10 Set Per Month
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 5000.00 - 50000.00 USD ($)/Set

Product Specifications

  • Method A: 52 mm x 52 mm Method B:Φ12 mm ≤ D(diameter) ≤ Φ71 mm Millimeter (mm)
  • 502 mm (L) x 334 mm (W) x 298 mm (H) Millimeter (mm)
  • Automotive Interior Materials
  • 1
  • 27kg Kilograms (kg)
  • Automotive Interiors
  • Textile and Fabrics Testing Instruments
  • 0 ~ 1000 Pa / 0 ~ 30 L/min

Trade Information

  • Jinan
  • 10 Set Per Month
  • 7 Days
  • Standard Veneer Case
  • All India
  • ISO 9001, CE

Product Description

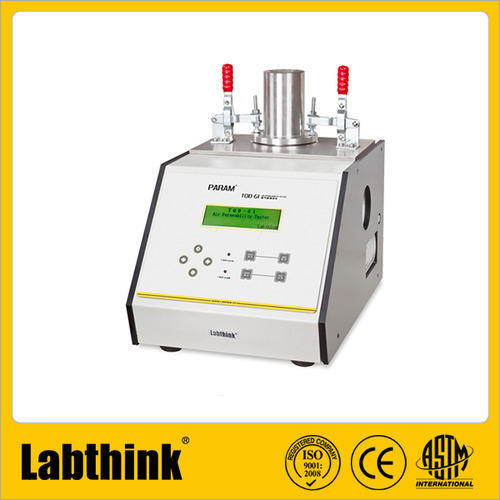

TQD-G1 Air Permeability Testing Machine is professionally designed for the determination of air permeability of decorating materials used in cars, e.g. polyurethane, expanded plastics, PVC, leather, textiles, nonwovens and other materials. Through the test, physical characteristics of  materials could be controlled to meet practical application requirements.

This instrument conforms to the multiple national and international Standards:  ISO 9237, ISO 4638, ISO 5636, GB/T 10655, GB/T 5453, GB/T 4689.22, GB/T 13764, ASTM D737, TAPPI T460, JIS P8117

Principle

Method A

Providing a constant air flux going through the specimen vertically, the air permeability could be obtained by measuring the pressure difference.

Method B

Providing the constant pressure difference between two sides of the specimen, the air permeability could be obtained by measuring the air flux through specific area in the certain time.

Here are the Features of  Air Permeability Testing Machine:

  • This instrument is designed according to the standard requirements of global automakers.
  • 2 test modes are available for customers: fix pressure difference to test flux and fix flux to test pressure difference
  • High precision sensors of electronic airflow and air pressure to ensure the accuracy of test data
  • The instrument is controlled by micro-computer, with LCD menu interface and PVC operation panel, which is convenient for customers to operate or view test data
  • Equipped with micro-printer and standard RS232 port for easy connection with PC and data transfer
Technical Specification

Specifications

TQD-G1

Test Range of Pressure

0 ~ 1000 Pa

Test Range of Flux

0 ~ 30 L/min

Specimen Size

Method A: 52 mm x 52 mm
Method B:¦12 mm ; D(diameter) 71 mm

Port Size

8 mm PU Tubing

Instrument Dimension

502 mm (L) x 334 mm (W) x 298 mm (H)

Power Supply

220VAC 50Hz / 120VAC 60Hz

Net Weight

27 kg



LABTHINK INSTRUMENTS CO. LTD.
