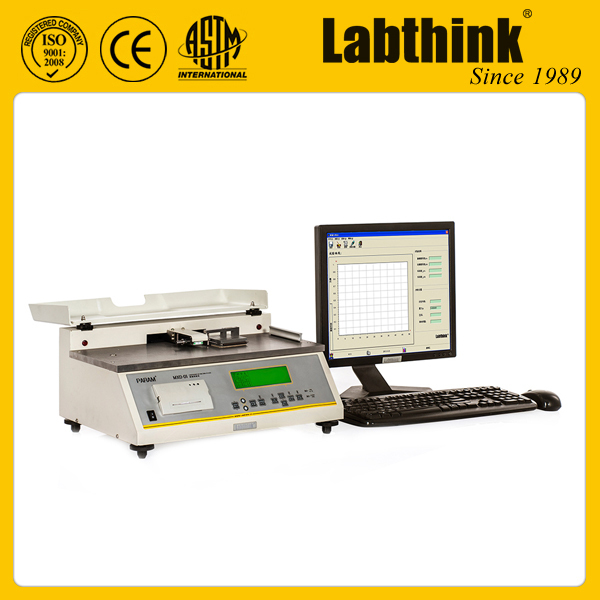

Friction Coefficient Testing Machine

2000.00 - 20000.00 USD ($)/Set

Get a Price/Quote

Product Details:

Humidity 20%RH ~ 70%RH
Number of Specimens 0 ~ 5 N
Temperature 232 Celsius (oC)
Power Supply 220VAC 50Hz / 120VAC 60Hz
Machine Weight 20kg Kilograms (kg)
Test Speed 100 mm/min, 150 mm/min
Test Stroke 70 mm, 150 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Friction Coefficient Testing Machine Price And Quantity

Minimum Order Quantity 1 Set
Price Range 2000.00 - 20000.00 USD ($)/Set

Friction Coefficient Testing Machine Product Specifications

Power Supply 220VAC 50Hz / 120VAC 60Hz
Machine Weight 20kg Kilograms (kg)
Temperature 232 Celsius (oC)
Test Speed 100 mm/min, 150 mm/min
Test Stroke 70 mm, 150 mm
Number of Specimens 0 ~ 5 N
Humidity 20%RH ~ 70%RH

Friction Coefficient Testing Machine Trade Information

FOB Port Jinan
Supply Ability 10 Set Per Month
Delivery Time 7 Days
Packaging Details Standard Veneer Case
Main Domestic Market All India
Certifications ISO 9001, CE

Product Description

Friction Coefficient Testing Machine is designed for static and kinetic coefficient of friction tests of plastic films, sheets, rubber, paper, PP woven bags, fabric style, metal-plastic composite strips/belts for communication cable, conveyor belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires. With the material smoothness testing, users can control and adjust material quality technical indexes to meet application demands. Besides, this tester is applicable to the smoothness measurement of cosmetics, eye drop and other daily chemistry.

Technical Specification

Specifications	MXD-02
Capacity Range	0 ~ 5 N
Accuracy	0.5% FS
Stroke	70 mm, 150 mm
Mass of Sled	200 g (Standard)
Mass of Sled	Sled of specific weight could be customized
Test Speed	100 mm/min, 150 mm/min
Test Speed	Test speed could be adjusted
Environment Condition	Temperature: 23 ±2 °C
Environment Condition	Humidity: 20%RH ~ 70%RH
Power Supply	AC 220V 50Hz
Instrument Dimension	630 mm (L) x 360 mm (W) x 230 mm (H)
Net Weight	33 kg

Features:

Satic and kinetic coefficients of friction can be tested for each specimen
This instrument conforms to multiple standards of ISO, ASTM and GB and the user could select testing methods as required
Test speed could be preset and adjusted by the users as required
Sled of specific weight could be customized
The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system error
Top quality parts and components made by world famous brands are used to ensure reliable overall product performance

Standards:

Friction Coefficient Testing Machine conforms to various national and international standards:ISO 8295, ASTM D1894, TAPPI T816, GB 10006
