Fabric Tearing Strength Testing Machine Paper Tear Tester

Fabric Tearing Strength Testing Machine Paper Tear Tester

2000.00 - 20000.00 USD ($)/Set

Product Details:

  • Power Supply 220VAC 50Hz / 120VAC 60Hz
  • Port Size Φ4 mm PU Tubing
  • Gas Pressure 0.6 MPa mpa
  • Machine Weight 23.5kg Kilograms (kg)
  • Supply Ability : 10 Set Per Week
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 2000.00 - 20000.00 USD ($)/Set

Product Specifications

  • 23.5kg Kilograms (kg)
  • Φ4 mm PU Tubing
  • 0.6 MPa mpa
  • 220VAC 50Hz / 120VAC 60Hz

Trade Information

  • Jinan
  • 10 Set Per Week
  • 7 Days
  • Standard Veneer Case
  • All India
  • ISO 9001, CE

Product Description

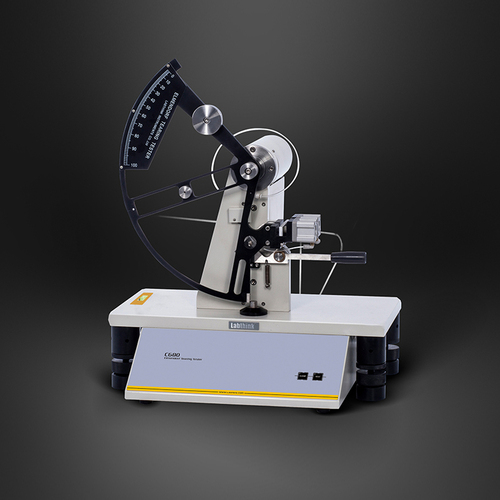

SLY-S1 Fabric Tearing Strength Testing Machine Paper Tear Tester     is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens.

Features:

  • SLY-S1 Elmendorf Tear Tester is controlled by computer with automatic and electronic measurement which is convenient for the operation
  • Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively
  • Computer assisted horizontal adjustment system could maintaina the instrument optimum status
  • Equipped with pendulums of multiple capacities
  • Professional software supports multi-unit data output
  • Equipped with RS232 port which is convenient to the data transmission and external connection
  • Supports LystemTM Lab Data Sharing System for uniform and systematic data management

Technical Specification

Specifications

SLY-S1 Elmendorf Tear Tester

Pendulum Capacity

200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400 gf

Gas Supply Pressure

0.6 MPa (outside of supply scope)

Port of Gas Supply

Φ4 mm PU Tubing

Instrument Dimension

480 mm (L) x 380 mm (W) x 560 mm (H)

Power Supply

220VAC 50Hz / 120VAC 60Hz

Net Weight

23.5 kg (Basic Pendulum of 200 gf)
