ASTM F1249 WVTR Permeation Analyzer - Infrared Sensor Water Vapor Permeability Tester

ASTM F1249 WVTR Permeation Analyzer - Infrared Sensor Water Vapor Permeability Tester

1.0 INR/Set

Product Details:

X

ASTM F1249 WVTR Permeation Analyzer - Infrared Sensor Water Vapor Permeability Tester Price And Quantity

  • 1.0 INR/Set
  • 1 Set

ASTM F1249 WVTR Permeation Analyzer - Infrared Sensor Water Vapor Permeability Tester Trade Information

  • ISO 9001 CE

Product Description

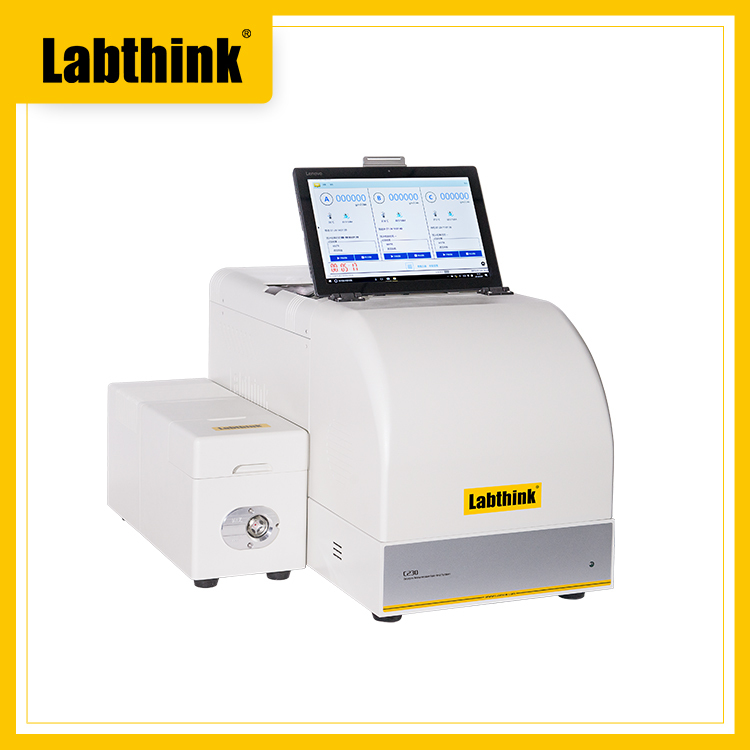

C390H WVTR Permeation Analyzer is designed for water vapor permeaility test of various barrier materials. This water vapor peremability tester is based on infrared sensor method and conforms to the requirements of ISO 15106-2 and ASTM F1249

Labthink C390H WVTR Permeation Analyzer is Featured as:
  • Labthink patented infrared sensor with higher sensitivity
  • patented design of integrated block consisting of 3 test cells
  • Temperature and humidity sensor for independent monitoring of test cells
  • 3 identical specimens can be tested simultaneously
  • Automatic temperature and humidity control
  • 12 touch-screen pad powered by WindowsTM 10 operating system
  • Easy-to-use and High-efficiency System

Application of Labthink C390H WVTR Permeation Analyzer
Vairous Barrier films, sheeting closure systems, blister packs and almost all types of packages

Paratmeter
Parameter Model C390H
Testing Efficiency g/(m2day) (Standard) 0.005 ~ 40
g/(m2day) (Optional) 0.005 ~ 100
g/(100in2day) 0.0003 ~ 2.6
g/(pkgday) (Package) 0.000025 ~ 0.2
Resolution g/(m2day) 0.0001
Repeatability g/(m2day) 0.005 or 2%
Test Temperature C 10 ~ 55 0.2
Test Humidity RH 5% ~ 90% 1%, 100%
