Package Leak Testing Equipment

50000 USD ($)/Set

Get a Price/Quote

Product Details:

Display Type Digital LED
Humidity 20% - 90% RH, non-condensing
Features Compact design, easy sample placement, quick results, corrosion resistance
Automation Grade Semi-Automatic
Application Leak detection for pouches, trays, bottles, vacuum packs, MAP packages etc.
Interface Type Membrane Keypad
Specimen Size Up to 300 mm 300 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Package Leak Testing Equipment Price And Quantity

Price 50000 USD ($)/Set
Price Range 50000.00 - 100000.00 USD ($)/Set
Minimum Order Quantity 1 Set

Package Leak Testing Equipment Product Specifications

Control Mode Digital Control Panel
Number of Specimens Single Specimen
Operating Voltage 230V AC
Mounting Type Table Top
Response Time <2 seconds
Measuring Range 0 to 1000 mbar
Gas Pressure 0-1 MPa adjustable
Frequency 50 Hz
Max Height 350 mm
Power Supply 230V AC, 50Hz
Resolution 1 mbar
Equipment Type Package Leak Testing Equipment
Machine Weight Approx. 25 kg
Capacity 1 unit per test cycle
Test Speed Manual (Operator controlled)
Interface Type Membrane Keypad
Test Width Up to 300 mm
Application Leak detection for pouches, trays, bottles, vacuum packs, MAP packages etc.
Automation Grade Semi-Automatic
Features Compact design, easy sample placement, quick results, corrosion resistance
Humidity 20% - 90% RH, non-condensing
Display Type Digital LED
Temperature 10C - 40C
Accuracy 1% of F.S.
Port Size 1/4 inch NPT
Test Range 0 - 1000 mbar
Usage Quality control and R&D
Specimen Size Up to 300 mm 300 mm
Test Stroke Max. 200 mm

Product Description

Product FeaturesNote1

Multiple Test Modes & Intelligent Statistics of Qualified Specimens

Negative pressure method
Multiple test modes including standard, multi-grade vacuum and methylthionine chloride mode
Automatic test with traditional methylthionine chloride
Vacuum degree, test time and infiltration time can be adjusted and test parameters can be saved automatically so that the tests with same test parameters can be started quickly
Automatic constant pressure compensation ensures that the tests can be performed under preset vacuum conditions
Real-time display of test curves, easy to observe the test results
Automatic statistics of qualified specimens
Main components and parts are supplied by well-known global manufacturers, with guaranteed performance

Brand New Patented Intelligent Touch Operating System

Industrial grade touch screen, one-button operation, simplified operating interface, remote upgrade and maintenance
Chinese and English operating interface
Measurement unit conversion
Automatic data storage and power failure memory to prevent data loss
Storage up to 1200 test records (standard mode)
Multiple-level user management and login with password
Micro-printer and USB ports for data transmission (optional)
The instrument conforms to the requirements of GMP (optional)
Labthinks unique DataShiledTM System for data management and connecting with information system (optional)

Test Principle

Firstly submerge the specimen in the water in the vacuum chamber, and then evacuate the vacuum chamber to form differential pressure between the inside and outside of specimen. The seal property can be obtained by observing the steady progression of bubbles from the specimen or observing how the specimen expands and restores to its original shape after vacuum release.

Test StandardNote1

ASTM D3078, GB/T 15171

Applications

Basic Applications
Glass Bottles, Pipes, Cans and Boxes
Plastic Bottles, Pipes, Cans and Boxes
Metal Bottles, Pipes, Cans and Boxes
Paper Plastic Composite Bags and Boxes
Extended Applications
Pen Refills
Electronic Components
Medical Instruments

Technical Specifications

Specifications	C660B
Vacuum Degree	0 -90 KPa/ 0 -13 psi
Accuracy	0.25% FS
Resolution	0.1 KPa / 0.01 psi
Vacuum Chamber Effective Sizes	270 mm x 210 mm (H) (standard)
	360 mm x 585 mm (H) (optional)
	460 mm x 330 mm (H) (optional)
	Note: customization is available for other sizes
Gas Supply	Air (outside of supply scope)
Gas Supply Pressure	0.5 MPa 0.7 Mpa (73psi 101psi)
Instrument Dimension	334 mm (L) x 230 mm (W) x 170 mm (H)
Power Supply	220VAC10% 50Hz / 120VAC10% 60Hz
Net Weight	Instrument: 6.5 kg Standard Vacuum Chamber: 9kg

Configurations

Standard Configurations: Instrument, Standard Vacuum Chamber (270 mm x 210 mm), 6 PU Tubing (1m)

Optional Parts: Micro Printer, Professional Software, Customized Vacuum Chamber, Air Compressor, GMP System, DataShieldTM Note3

Note: 1. The gas supply port of the instrument is6 mm PU Tubing;
2. Customers need to prepare gas supply.

Note 1: The described test standard, applications and product features should be in line with Technical Specifications.
Note 2: The parameters in the table are measured by professional operators in Labthink laboratory under strictly controlled laboratory conditions.
Note 3: DataShieldTM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShieldTM system which can be configured as required.

Advanced Leak Detection for Packaging Integrity

This equipment guarantees precise leak detection using air or water as the test medium, safeguarding the integrity of medical, food, and industrial packaging. Its highly responsive digital LED display provides results in under two seconds. The well-designed interface, compact form, and corrosion-resistant materials ensure smooth operation and longevity.

Operator-Friendly Features and Safety

User interaction is made simple with a digital control panel and membrane keypad. Safety is a priority, with an overpressure safety valve and audio-visual alarms to immediately alert users to leaks. The integrated, oil-free vacuum pump reduces maintenance while keeping testing clean and hassle-free.

FAQs of Package Leak Testing Equipment:

Q: How does this Package Leak Testing Equipment operate and what is the testing process?

A: The equipment uses an integrated, oil-free vacuum pump to create a controlled environment within the stainless steel chamber. The package is placed inside, and the operator sets the test parameters via the digital control panel. Depending on the selected medium (air or water), the system detects leaks by monitoring pressure changes and signals results through its audio-visual alert and digital display.

Q: What types of packaging can be tested with this equipment?

A: This machine is suitable for a broad range of packaging formats, including pouches, trays, bottles, vacuum packs, and Modified Atmosphere Packaging (MAP) up to 300 mm x 300 mm. Its design ensures accurate testing for most packaging used in medical, food, and industrial sectors.

Q: When is it necessary to perform package leak testing in quality control or R&D?

A: Leak testing should be performed during product development, periodic quality checks, and before shipment to ensure package integrity. It is particularly crucial for products requiring sterile or modified atmosphere environments, such as pharmaceuticals, food, or sensitive electronic components.

Q: Where can this Package Leak Testing Equipment be installed and used?

A: Designed as a compact, table-top unit with a robust stainless steel chamber, it can be easily installed in labs, quality control departments, and production facilities. Its portability and modest footprint (540 x 390 x 350 mm) make it ideal for space-conscious environments.

Q: What are the benefits of using a device compliant with ISO 11607 and ASTM F2096?

A: Compliance with these standards ensures reliable, reproducible test results accepted internationally. It demonstrates that your quality processes meet strict regulatory requirements, reducing the risk of product recalls or safety issues due to package leaks.

Q: How does the equipment ensure operator and product safety during testing?

A: Operator safety is maintained through an overpressure safety valve and robust, corrosion-resistant chamber. The audio-visual alarm system warns immediately in case of leak detection, and the oil-free vacuum pump prevents contamination. The equipment runs on safe 230V AC, 50Hz power supply.

Q: What is the process for recording and exporting test data?

A: Test data can be easily recorded and exported via the built-in USB or printer port. Results are displayed on the 4-inch LCD panel and can be quickly saved or printed for documentation, traceability, and compliance audit purposes.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Package Leak Tester' category

Package Leak Detection Instrument Minimum Order Quantity : 10 Resolution : 0.1 mbar Max Height : 400 mm Power Supply : 220V AC, 50Hz Frequency : 50 Hz Measuring Range : 01000 mbar Gas Pressure : 00.9 MPa Response Time : 2 seconds Mounting Type : Tabletop Control Mode : Digital Touch Panel Number of Specimens : 1 Operating Voltage : 220V AC Usage : Package quality testing Specimen Size : Customizable Test Stroke : 0200 mm Port Size : 6 mm Test Range : 1~1000 mbar Temperature : 10C 40C Accuracy : 1% FS Display Type : Digital LCD Humidity : 0~98% RH (noncondensing) Features : Easy operation, Fast detection, High sensitivity, Audible alarm Application : Leak testing for packaging materials Test Width : Up to 300 mm Interface Type : RS232 Automation Grade : Semiautomatic Machine Weight : 25 kg Capacity : Single Chamber Test Speed : Adjustable

Send Inquiry

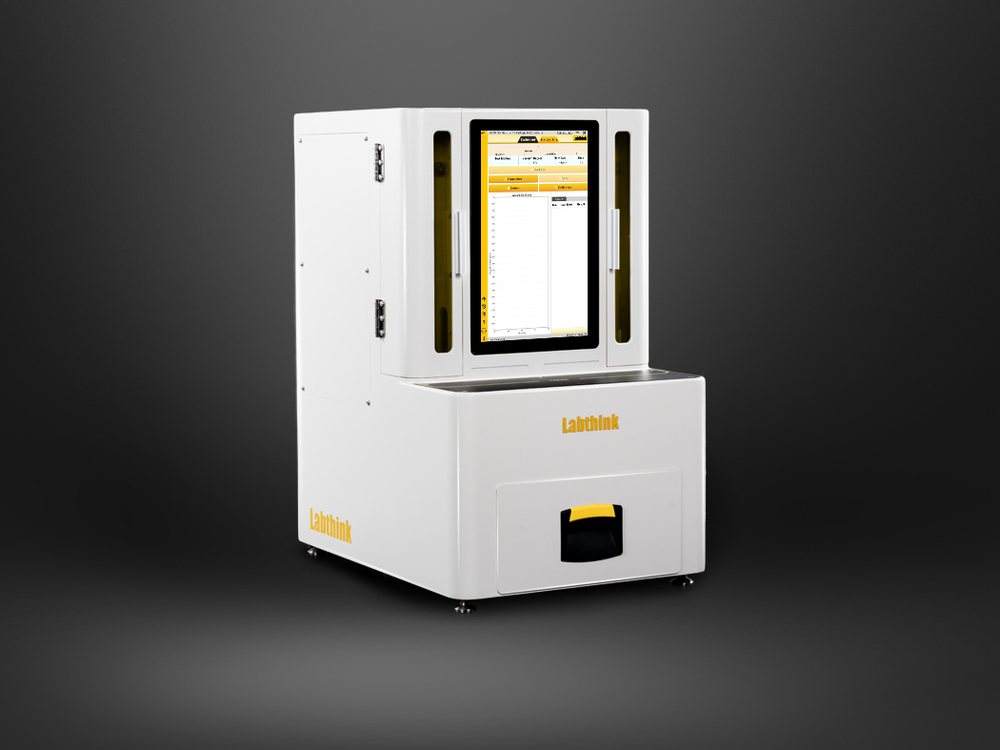

Preventing Pharmaceutical Packaging Failures with NDT Leak Testing Price : 50000 USD ($)/Set Minimum Order Quantity : 1 Resolution : 0.01 mbar Max Height : 150 mm Power Supply : 220V AC, 50Hz Frequency : 50/60Hz Measuring Range : 0.1 500 mbar Gas Pressure : 0.4 0.8 MPa Response Time : 2 seconds Mounting Type : Tabletop/Desktop Control Mode : MicroprocessorBased Control Number of Specimens : 1 Operating Voltage : 220V AC Usage : Leak Detection for Blister Packs, Ampoules, Vials, Bottles, etc. Specimen Size : Customizable Test Stroke : 0 150 mm Port Size : 6 mm OD Test Range : 0 1000 mbar Temperature : 10C 40C Accuracy : 0.5% FS Display Type : Digital LCD Humidity : 20% 80% RH Features : NDT, Data Logging, Pass/Fail Indication, UserFriendly Interface Application : Pharmaceutical Packaging Integrity Testing Test Width : 10 300 mm Interface Type : RS232/USB Automation Grade : Automatic Machine Weight : Approx. 45 kg Capacity : Single/Multiple Pack Testing Test Speed : Up to 30 tests/min
