Leak Test Apparatus

Leak Test Apparatus

2000.00 - 20000.00 USD ($)/Set

Product Details:

  • Number of Specimens 1
  • Type Electronic
  • Use Gross Leak Testing
  • Test Medium water
  • Net Weight 39kg Kilograms (kg)
  • Port Size Ф8 mm PU Tubing
  • Operating Mode Semi Automated
  • Supply Ability : 10 Set Per Month
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 2000.00 - 20000.00 USD ($)/Set

Product Specifications

  • water
  • 39kg Kilograms (kg)
  • Gross Leak Testing
  • Semi Automated
  • Electronic
  • Ф8 mm PU Tubing
  • 1

Trade Information

  • 10 Set Per Month
  • 7 Days
  • Standard Veneer Case
  • All India
  • ISO 9001, CE

Product Description

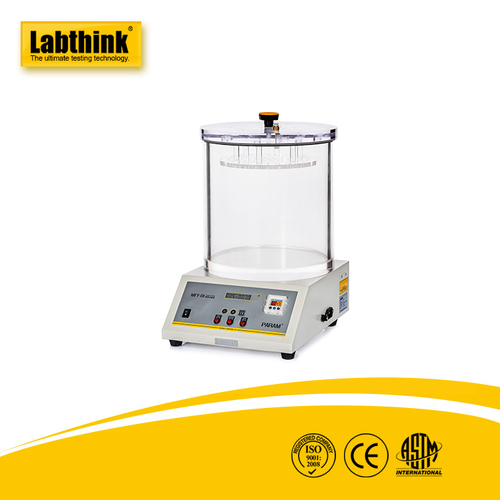

i-Process 6200 on-site Leak Test Apparatus is professionally designed for the on-site leakage test of packages used for food, pharmaceuticals, medical apparatus, daily chemicals, cars, electronic components, stationeries and other industries.

Technical Specifications

Items

Specifications

Vacuum Degree

0 ~ -90 KPa

Accuracy

1% FS

Vacuum Chamber Effective Sizes

270 mm x 210 mm (H) (standard)


Note: customization is available for other sizes

Gas Supply Pressure

0.7 MPa (outside of supply scope)

Port Size

8 mm PU Tubing

Instrument Dimension

600 mm (L) x 450 mm (W) x 600 mm (H)

Power Supply

AC 220V  (47~ 63) Hz

Net Weight

39 kg

Standards

This Leak Test Apparatus conforms to national and international standards: ASTM D3078, GB/T 15171
