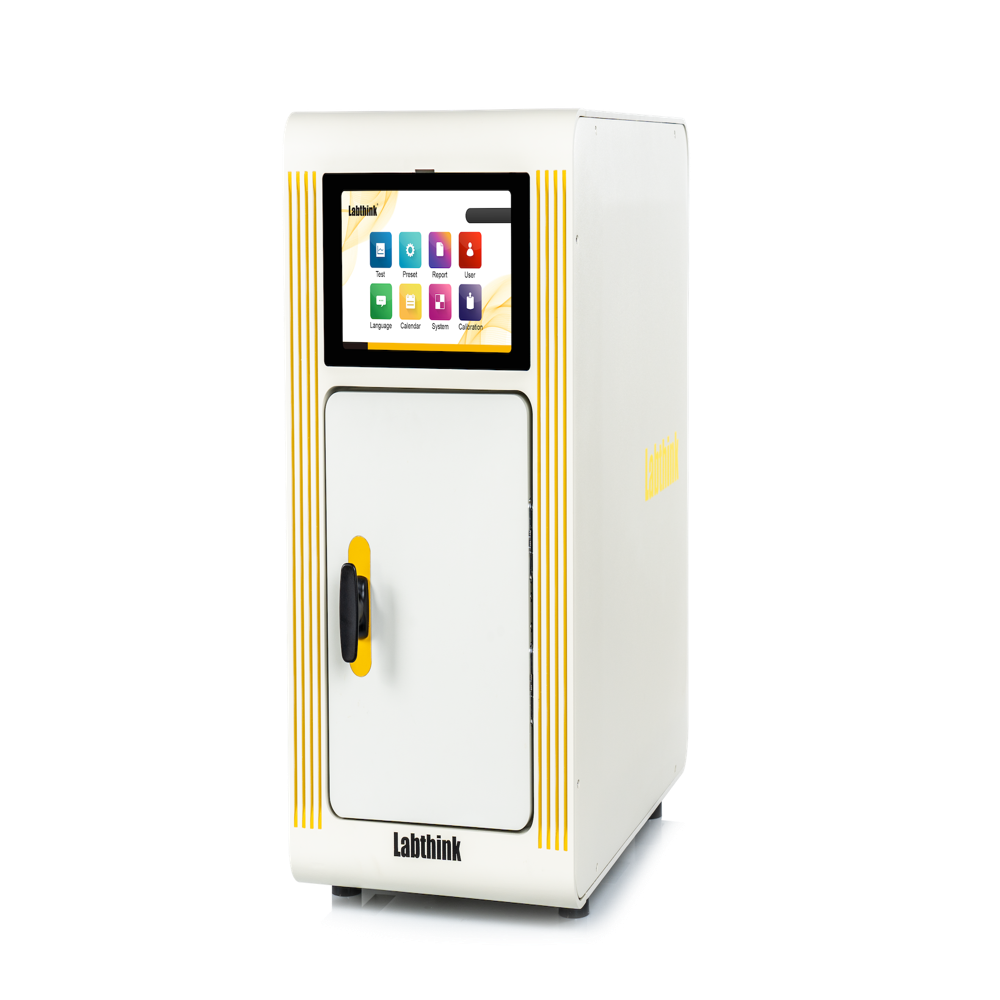

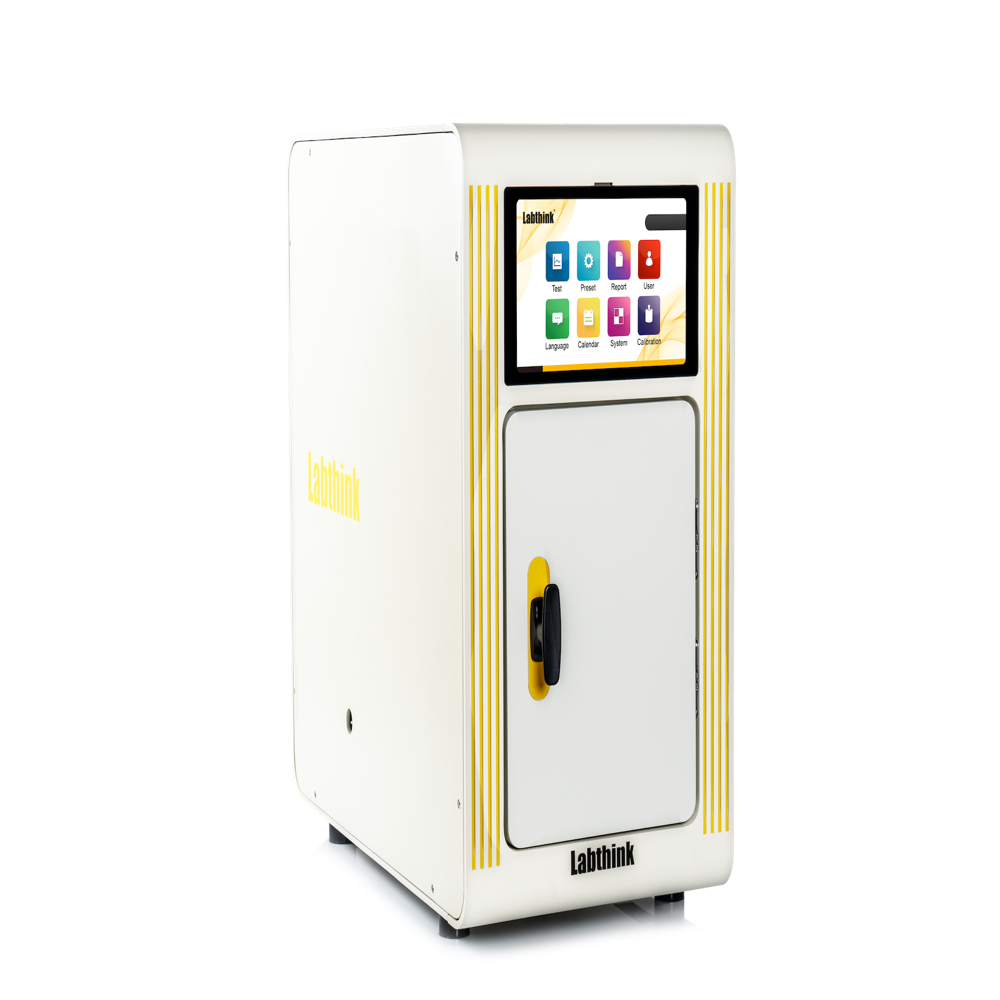

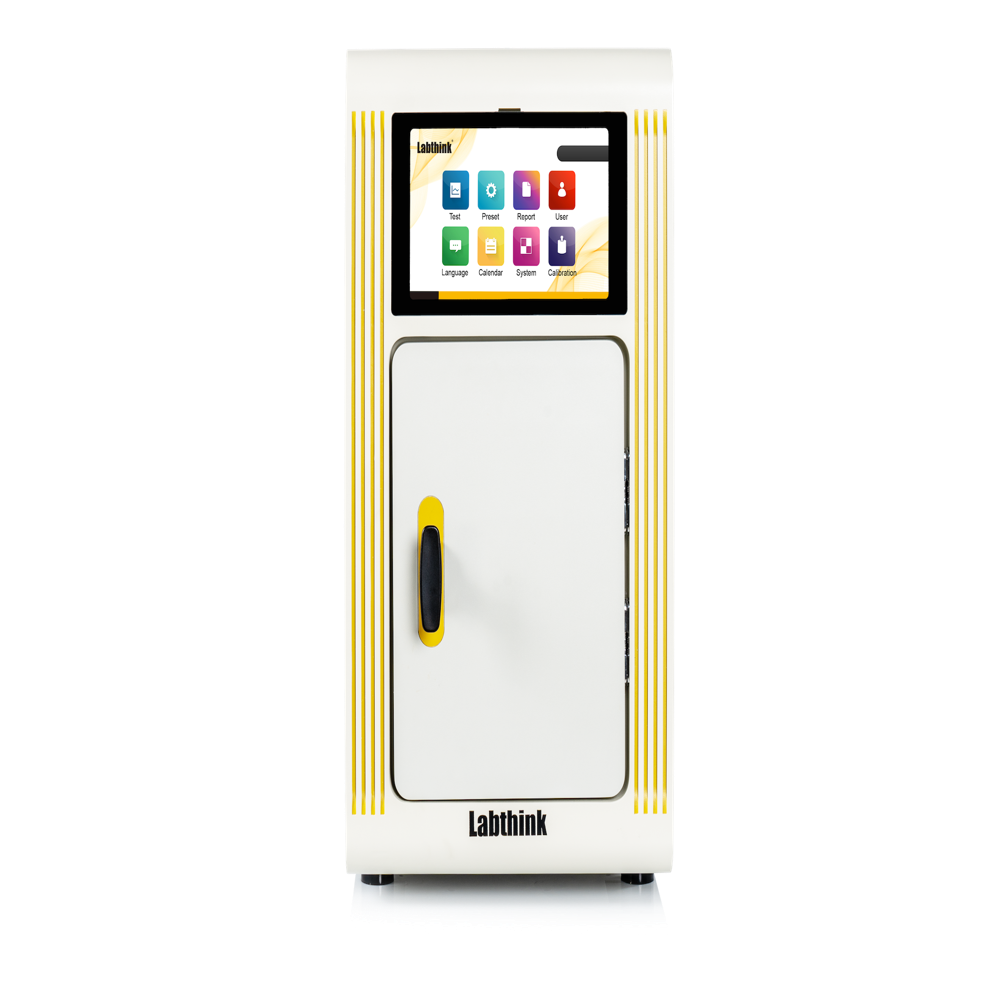

C401H Oxygen/Water Vapor Transmission Rate Test System

C401H Oxygen/Water Vapor Transmission Rate Test System

Name: C401H Oxygen/Water Vapor Transmission Rate Test System
Brand: LABTHINK INSTRUMENTS CO. LTD.
Price: 20000.0 USD
Availability: InStock

20000.0 USD ($)/Unit

Get a Price/Quote

Product Details:

Resolution 0.0001
Application Film, Package, etc.
Test Range cc/(m2 day) (Standard area of 50 cm2) 0.01~200 g/(m2 day) (Standard area of 50 cm2) 0.005~50 cc/(pkg day) (Package) 0.00005~1 g/(pkg day) (Package) 0.00002~0.25
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

C401H Oxygen/Water Vapor Transmission Rate Test System Price And Quantity

Price 20000.0 USD ($)/Unit
Minimum Order Quantity 1 Unit

C401H Oxygen/Water Vapor Transmission Rate Test System Product Specifications

Test Range cc/(m2 day) (Standard area of 50 cm2) 0.01~200 g/(m2 day) (Standard area of 50 cm2) 0.005~50 cc/(pkg day) (Package) 0.00005~1 g/(pkg day) (Package) 0.00002~0.25
Resolution 0.0001
Application Film, Package, etc.

Product Description

C401H Oxygen/Water Vapor Transmission Rate Test System is based on the testing principles of coulometric oxygen sensor and infrared water vapor sensor. It is designed and manufactured in accordance with standards such as ASTM D3985, ASTM F1249, and ISO 15106-2. It provides ahigh-precision integrated testing solution for water vapor and oxygen transmission rates of high and medium barrier materials. It is widely applicable in pharmaceuticals, food, medical devices, daily chemicals, photovoltaics, electronics and other fields, accurately detecting the oxygen and water vapor transmission performances of films, packaging, sheets, and related materials.

Unmatched Test Flexibility

Equipped to assess both films and finished packages, the C401H system supports multiple sample types with its broad test ranges. Whether checking raw film materials or evaluating final package barriers, users can trust the system's adaptability and accuracy to meet varied industry demands.

Industry-Leading Precision

With a world-class resolution of 0.0001 and extensive test ranges for both OTR and WVTR, this instrument enables detection of even the minutest changes in barrier performance. Precision like this supports decision-making for packaging improvement and compliance with global standards.

Versatile Applications Across Sectors

The C401H is a vital tool for sectors such as food, pharmaceutical, and industrial packaging. Its capacity to handle different package types ensures comprehensive analysis for optimized product shelf life and reduced spoilage, safeguarding both product integrity and brand reputation.

FAQ's of C401H Oxygen/Water Vapor Transmission Rate Test System:

Q: How does the C401H Test System measure both oxygen and water vapor transmission rates?

A: The C401H employs advanced techniques to simultaneously or separately measure Oxygen Transmission Rate (OTR) and Water Vapor Transmission Rate (WVTR) across films or packaged products. Cutting-edge sensors and controlled test conditions ensure high accuracy and reproducibility for both parameters.

Q: What materials can be tested with the C401H system?

A: The C401H is designed for testing a wide variety of films and flexible or rigid package types, making it suitable for industries like food, pharmaceuticals, and general packaging. Both standard films and finished packaging can be accurately analyzed for permeation barriers.

Q: When should manufacturers use this system in their quality control process?

A: Manufacturers should use the C401H during research and development, routine quality checks, or when optimizing packaging for specific shelf-life requirements. Early-stage use ensures materials meet permeability specifications prior to product release.

Q: Where is the C401H commonly installed or used?

A: This system is most frequently utilized in quality control laboratories, production facilities, and R&D departments of packaging manufacturers, exporters, and suppliers who require reliable barrier property assessments.

Q: What is the typical process for conducting a test using the C401H?

A: Operators mount the film or package sample onto the test cell, configure the instrument for the desired test parameter and range, and initiate the test. The system automatically measures and logs the permeation rate, delivering precise results for analysis.

Q: What are the main benefits of using the C401H for OTR and WVTR testing?

A: Key benefits include robust accuracy, a wide measurement range, and the ability to evaluate both films and full packages. This ensures compliance with regulatory standards, reduces spoilage risk, and supports packaging innovation.
