Paper and Film Coefficient Of Friction (Cof) Tester

Paper and Film Coefficient Of Friction (Cof) Tester

2000.00 - 20000.00 USD ($)/Set

Product Details:

  • Humidity 20%-70%RH
  • Temperature 10-40 Celsius (oC)
  • Power Supply 220VAC 50Hz / 120VAC 60Hz
  • Number of Specimens 1
  • Machine Weight 20kg Kilograms (kg)
  • Test Speed 150mm/min
  • Test Stroke ≥130 mm
  • Supply Ability : 10 Set Per Month
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 2000.00 - 20000.00 USD ($)/Set

Product Specifications

  • 20kg Kilograms (kg)
  • 20%-70%RH
  • 10-40 Celsius (oC)
  • 220VAC 50Hz / 120VAC 60Hz
  • ≥130 mm
  • 1
  • 150mm/min

Trade Information

  • Jinan
  • 10 Set Per Month
  • 7 Days
  • Standard venner case
  • All India
  • ISO 9001, CE

Product Description

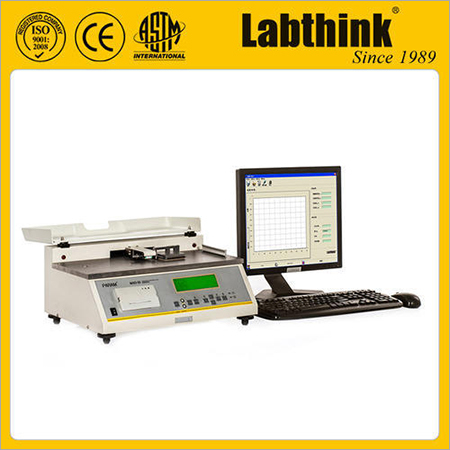

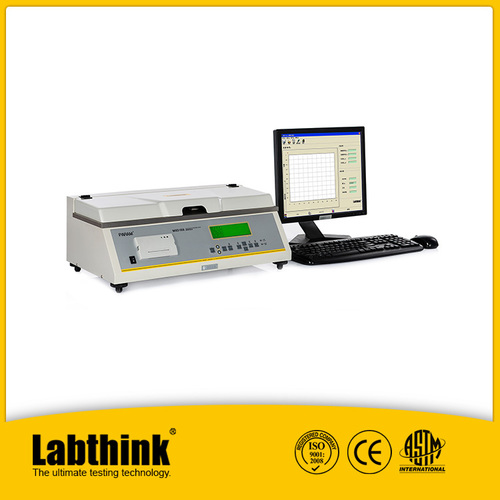

MXD-01A Paper and Film Coefficient Of Friction (Cof) Tester is based on ASTM D1894 standard and it is applicable to measure static and kinetic coefficients of friction for plastic films, sheets, rubber, paper and paper board, PP woven bags, fabrics, metal-plastic composite belts for communication cables, convey belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires.

Features

  • Static and Kinetic coefficients of friction can be tested
  • Controlled by micro-computer
  • Professional operating software
  • Micro-printer
  • RS232

Specifications

Capacity Range

0 ~ 5 N

Accuracy

1% FS

Strok

130 mm

Mass of Sled

200 g (500 g optional)
Customization is available for other masses

Test Speed

150 mm/min

Environment Condition

Temperature: 10oC ~ 40oC


Humidity: 20%RH ~ 70%RH

Power Supply

AC 220V 50Hz

Instrument Dimension

575 mm (L) x 310 mm (W) x 208 mm (H)

Net Weight

34 kg
