Moisture Barrier Property Tester (MVTR)

Moisture Barrier Property Tester (MVTR)

5000.00 - 50000.00 USD ($)/Set

Product Details:

  • Temperature 15-65 Celsius (oC)
  • Number of Specimens 1~12 (with independent test results)
  • Port Size Φ6 mm PU Tubing
  • Power Supply 220VAC 50Hz / 120VAC 60Hz
  • Test Range 0.1~10,000 g/m2/24h
  • Specimen Size Φ74 mm Millimeter (mm)
  • Humidity 40%RH~95%RH (standard is 90%RH)
  • Supply Ability : 10 Set Per Week
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 5000.00 - 50000.00 USD ($)/Set

Product Specifications

  • 36 kg Kilograms (kg)
  • 220VAC 50Hz / 120VAC 60Hz
  • 0.1~10,000 g/m2/24h
  • Φ74 mm Millimeter (mm)
  • 40%RH~95%RH (standard is 90%RH)
  • Φ6 mm PU Tubing
  • 15-65 Celsius (oC)
  • 1~12 (with independent test results)

Trade Information

  • Jinan
  • 10 Set Per Week
  • 7 Days
  • Standard Veneer Case I
  • All India
  • ISO 9001, CE

Product Description

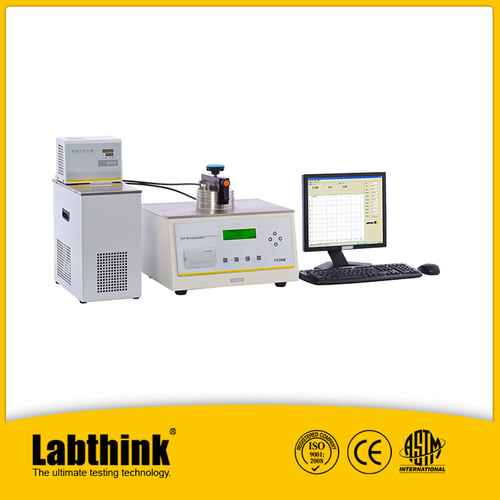

W3/0120 Moisture Barrier Property Tester (MVTR) is equipped with 12 distinct or equivalent specimens which can be tested individually with independent test results at one operation.

It  conforms to ISO 2528, GB 1037, GB/T 16928, ASTM E96, ASTM D1653, TAPPI T464, DIN 53122-1, JIS Z0208, YBB 00092003

Test Materials:

Packaging materials, such as films, aluminum foil, infusion bag, sheets, paper, paper board, solar battery panel, cellophane, ceramics and porcelain, and various containers such as bag, pouch, bottle, can, bowl, box, widely used in the industries of food, pharmaceuticals, personal care, household, electronics and so on.

Specifications

Specifications

Film Test

Test Range

0.1~10,000 g/m2 24h (standard)

Number of Specimen

1~12 (with independent test results)

Test Accuracy

0.01 g/m2 24h

Resolution

0.0001 g

Temperature Range

15 °C~65 °C (standard)

Humidity Range

40%RH~95%RH (standard is 90%RH)

Air Velocity

0.5~2.5 m/s (customization is available)

Test Area

33 cm2

Specimen Thickness

3 mm (customization is available for other thickness)

Specimen Size

74 mm

Gas Supply

Air

Gas Supply Pressure

0.6 MPa

Port Size

6 mm PU Tubing
