Labthink Heat Sealing Test Machine
2000.00 - 20000.00 USD ($)/Set
Product Details:
- Temperature Room temperature ~ 300C Celsius (oC)
- Gas Pressure 0.05 MPa ~ 0.7MPa Pa
- Machine Weight 68kg Kilograms (kg)
- Supply Ability : 10 Set Per Month
- Click to view more
X
Price And Quantity
- 2000.00 - 20000.00 USD ($)/Set
- 1 Set
Product Specifications
- 68kg Kilograms (kg)
- 0.05 MPa ~ 0.7MPa Pa
- Room temperature ~ 300C Celsius (oC)
Trade Information
- Jinan
- 10 Set Per Month
- 7 Days
- Standard Veneer Case
- All India
- ISO 9001, CE
Product Description

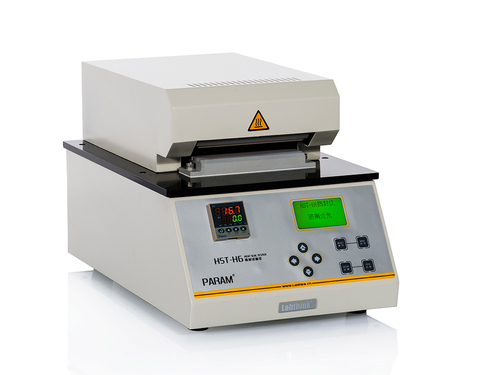

Labthink Heat Sealing Test Machine
- Labthink HST-H3 Heat Sealing Test Machine is widely used in packaging and plastic industry.
- Heat Sealer Tester is used to measure the heat seal performance of flexible packaging products. It is composed of upper and lower heat sealing jaws.
Principle:
- Before the test, preset the heat seal temperature, pressure and dwell time value, place the specimen in between the upper and lower jaws, and then press start button. The whole sealing process can be finished automatically.
Standards:
- ASTM F2029, QB/T 2358, YBB 00122003
Test method:
- heat sealing method
Features:
- Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation
- Wide range control of temperature, pressure and time that meet various test conditions
- Manual or pedal switch, as well as anti-scald design provides convenient and safe operating environment
- The instrument is controlled by micro-computer with LCD, PVC operation panel and menu interface
- Professional software supports remote operation for convenient data saving, exporting, and printing
Technical Specification
| Specifications | HST-H3 |
|---|---|
| Sealing Temperature | Room temperature ~ 250C |
| Temperature Control Accuracy | 0.2C |
| Temperature Measuring Accuracy | 2.5C (Room Temperature ~ 120C, Sealing Area270mm) |
| Dwell Time | 0.5~999.9 s |
| Sealing Pressure | 0.05 MPa ~ 0.7MPa |
| Sealing Area | 330 mm x 10 mm (customization available) |
| Heating Mode | Single heating surface or double heating surfaces |
| Gas Supply Pressure | 0.7 MPa ~ 0.8MPa (outside of supply scope) |
| Port Size | 6 mm PU Tubing |
| Instrument Dimension | 536 mm (L) x 335 mm (W) x 413 mm (H) |
| Power Supply | 220VAC 50Hz / 120VAC 60Hz |
| Net Weight | 43 Kg |
