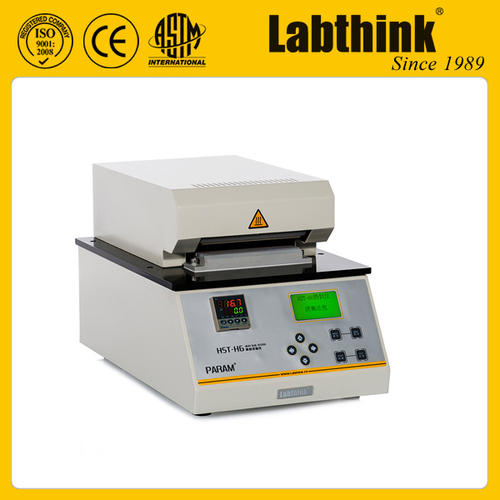

Heat Sealing Test Machine For Plastic Films

Product Description

Labthink Heat Sealing Test Machine is used to determine the sealing temperature, pressure and dwell time of plastic films for packaging materials. The instrument adopts the specially designed heat sealing jaws, which completely conform to multiple national and international standards.

Applications

Plastic films, plastic composite films, paper-plastic composite films, coextruded films, aluminized films, aluminum foils, aluminum foil composite films and many others.

Standards

ASTM F2029

Technical Specification

• Sealing Temperature Room temperature ~ 300°C
• Accuracy ±0.2°C
• Dwell Time 0.1~999.9 s
• Sealing Pressure 0.05 MPa ~ 0.7 MPa
• Sealing Area 150 mm x 10 mm (customization available)
• Heating Mode Single Heating Surface
• Gas Supply Pressure 0.5 MPa ~ 0.7MPa (outside of supply scope)
• Port Size 6 mm PU Tubing
• Instrument Dimension 290 mm (L) x 475 mm (W) x 298 mm (H)
• Power Supply AC 220V 50Hz
• Net Weight 19 kg
