Heat Seal Strength Tester

Heat Seal Strength Tester

2000.00 - 20000.00 USD ($)/Set

Product Details:

  • Gas Pressure 0.05 MPa ~ 0.7MPa mpa
  • Number of Specimens 1
  • Power Supply 220VAC 50Hz / 120VAC 60Hz
  • Temperature Room temperature ~ 300°C Celsius (oC)
  • Machine Weight 68kg Kilograms (kg)
  • Test Width 10mm Millimeter (mm)
  • Control Mode micro computer controlled
  • Supply Ability : 10 Set Per Month
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 2000.00 - 20000.00 USD ($)/Set

Product Specifications

  • Room temperature ~ 300°C Celsius (oC)
  • 68kg Kilograms (kg)
  • 0.05 MPa ~ 0.7MPa mpa
  • 1
  • 10mm Millimeter (mm)
  • 220VAC 50Hz / 120VAC 60Hz
  • micro computer controlled

Trade Information

  • Jinan
  • 10 Set Per Month
  • 7 Days
  • Standard Veneer Case
  • All India
  • ISO 9001, CE

Product Description

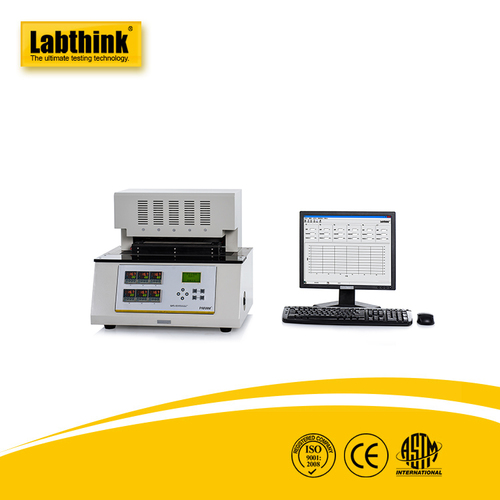

HST-H3Heat Seal Strength Tester is used to seal specimen for further determination of seal temperature, pressure and time of plastic films. It is equipped with up and low sealing draws.

Standards:

  • ASTM F2029

Features:

  • Based on the heat sealing method, and is professionally applicable to the determination of heat seal temperature, dwell time, and the pressure of various composite films to guide industrial production
  • Adopts the specially designed heat sealing jaws, which completely conform to multiple national and international standards.
  • Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation
  • Wide range control of temperature, pressure and time that meet various test conditions
  • Manual or pedal switch, as well as anti-scald design provides convenient and safe operating environment

Technical Specification

Specifications

HST-H3 Heat Seal Strength Tester

Sealing Temperature

Room temperature ~ 300oC

Accuracy

+ 0.2oC

Dwell Time

0.1~999.9 s

Sealing Pressure

0.05 MPa ~ 0.7MPa

Sealing Area

330 mm x 10 mm (customization available)

Heating Mode

Single heating surface or double heating surfaces

Gas Supply Pressure

0.5 MPa ~ 0.7MPa (outside of supply scope)

Port Size

DIA 6 mm PU Tubing

Instrument Dimension

536 mm (L) x 335 mm (W) x 413 mm (H)

Power Supply

AC 220V 50Hz

Net Weight

43 Kg


Applications:

  • Films with Smooth Surface
  • Films with Decorative Pattern Surface
  • Covers of Jelly Cups
  • Plastic Flexible Tubes

LABTHINK INSTRUMENTS CO. LTD.
