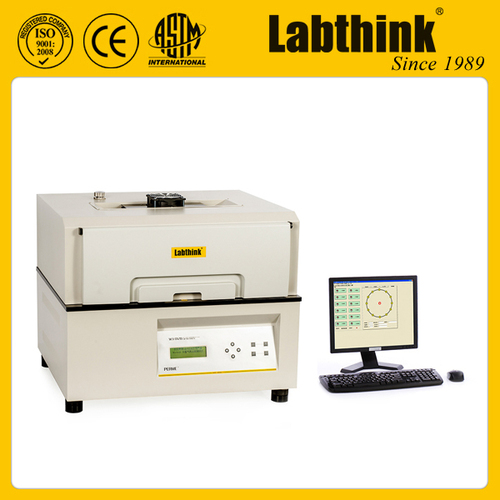

Textile Water Vapor Transmission Testing Machine

Textile Water Vapor Transmission Testing Machine
Textile Water Vapor Transmission Testing Machine
Send Inquiry
Product Code : W3/031
Brand Name : Labthink
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 5000.00 - 50000.00 USD ($)
Product Description
W3/031 Textile Water Vapor Transmission Testing Machine    is based on the gravimetric method and available for the WVTR test of flexible films, sheets and foils. It is equipped with 3 test cups and can test 3 specimens independently.


Under a certain test temperature, a constant humidity difference is generated between two sides of the test specimen. The water vapor permeates through the specimen and into the dry side. By measuring the weight changes of the test dish in different time, water vapor transmission rate and other parameters can be obtained.


ISO 2528, ASTM E96, ASTM D1653, TAPPI T464, DIN 53122-1, JIS Z0208


  • Based on the cup method, and is professionally applicable to the water vapor transmission rate test of film specimens.
  • Equipped with three individual test dishes and the testing process is completely automatic and conforms to international standards.
  • Wide range and high-precision of automatic temperature and humidity control to support various combinations of non-standard test conditions.
  • Standard air velocity enables constant humidity difference between two sides of test dishes.
  • Convenient fast-access calibration ports for temperature and humidity.
  • Reference film or standard weight for fast and accurate calibration.
  • Latest patent-design mechanical structure to get precision test data during weighing process.
  • Utilizes the embedded computer control system that provides a better performance than traditional single chip system.
  • Equipped with the latest operating software, with user-friendly operating interface and intelligent data management functions.
  • Supports LystemTM Lab Data Sharing System, which ensures uniform management of test results and test reports.


Specifications Film Test
Test Range 0.1~10,000 g/m2·24h (standard)
Number of Specimens 1~3 with independent test results
Accuracy 0.01 g/m2·24h
Resolution 0.0001 g
Temperature Range 15°C~55°C (standard)
Temperature Accuracy ±0.1°C (standard)
Humidity Range 10%RH~98%RH
Humidity Accuracy ±1%RH
Air Velocity 0.5~2.5 m/s (customization available)
Test Area 33 cm2
Specimen Thickness ≤3 mm (customization available)
Specimen Size Φ74 mm
Test Chamber Size 27 L
Gas Supply Air
Gas Supply Pressure 0.6 MPa
Port Size Φ4 mm PU Tubing
Instrument Dimension 580 mm (L) x 680 mm (W) x 470 mm (H)
Power Supply AC (85~264)V (47~63)Hz
Net Weight 83 kg


1. Films
2. Sheeting
3. Paper and Paper Board
4. Textiles and Nonwovens
5. Inverted Cup Method
6. Solar Back-sheets
7. LCD Monitor Films
8. Aseptic Wound Protecting Films and Face Masks

Trade Information
  • FOB Port
  • Jinan
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Standard Veneer Case
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, CE
