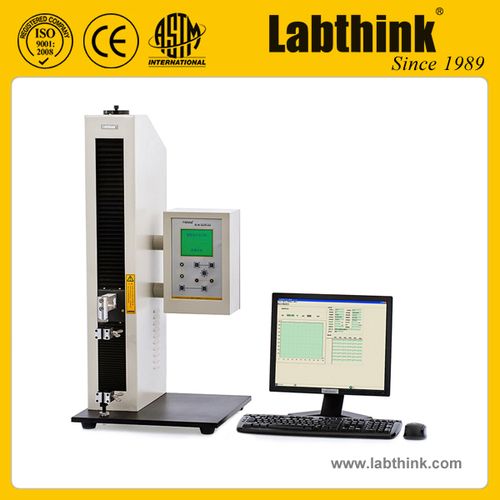

Tensile Testing Equipment for Film Packages

Tensile Testing Equipment for Film Packages
Tensile Testing Equipment for Film Packages
Product Code : XLW
Brand Name : Labthink
Product Description

Tensile Testing Equipment for Film Packages

Tensile Testing Equipment for Film Packages   is equipped with more than 100 grips for tests of more than 1000 materials. And customization is also available for special materials tests. Examples of instrument applications:

Basic Applications

  • Shearing Test, Test of Tensile Strength and Elongation Rate
  • Test of Tensile Strength at Break
  • Tear Resistance Test
  • Heat Seal Strength Test
  • 90 Degree Peel Test
  • 180 Degree Peel Test
  • 1% of full scale effectively ensures the accuracy of test results7 independent test modes are available, including tensile strength, peeling force, tearing force, heat seal strength and other force properties of flexible packages
  • Different ranges of load cells and 7 distinct test speeds to meet different test requirements
  • Labthink Fabric Tensile Strength Testing Machine  is controlled by micro-computer with menu interface, PVC operation panel and large LCD display
  • Intelligent designs of over-travel protection, overload protection, automatic position reset and power failure memory for safe test operation



Specifications

Tensile Testing Equipment for Film Packages
Load Cell Capacity    100 N, 200 N, 500 N (one of them is available)
Accuracy    1% FS
Test Speed    50, 100, 150, 200, 250, 300, 500 mm/min
Number of Specimens    1
Specimen Width    30 mm (Standard Grip)
50 mm (Optional Grip)
Clamping Way    Manual Specimen Clamp
Stroke    600 mm
Instrument Dimension    450 mm (L) x 450 mm (W) x 980 mm (H)
Power Supply    AC 220V 50Hz
Net Weight    65 kg

Labthink instruments have been widely used and recognized by more than 6,000 scientific institutional laboratories, inspection organizations, and universities and corporate quality control departments.

Labthink is dedicated to providing professional consulting, testing instruments, support services, and quality assurance solutions for packaging in various fields.
