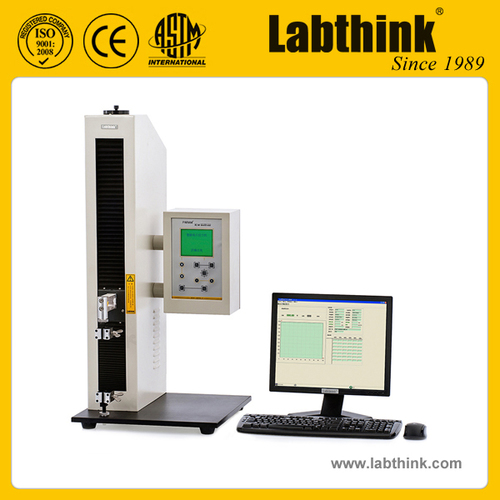

Tensile Strength Tester for Adhesive Tapes

Tensile Strength Tester for Adhesive Tapes
Tensile Strength Tester for Adhesive Tapes
Product Code : XLW (PC)
Brand Name : Labthink
Product Description

In our extensive gamut of products, we bring forth for our clients Tensile Tester that is used to measure adhesive strength, puncture force, opening and unwrapping force of various foils, fabrics, films, etc. Proposed tester is precisely engineered by our deft workforce using high grade components and sophisticated techniques. Further, this tester is stringently examined on various quality parameters to ensure its proper functioning. As per the varied demands of clients, offered Tensile Tester is available with us in various technical specifications at industry leading price.

Features:

  • Easy installation

  • Sturdy construction

  • Maintenance free

  • Enhanced durability

Specifications:
  • Better than 0.5% of reading value effectively ensures accurate test results

  • 7 independent test modes are available, including tensile strength, peeling force, tearing force and other force properties of flexible packages

  • 1000 mm extra-long stroke satisfies the test needs of various materials with extreme deformation rate

  • Different test range of load cells and 7distinct test speeds to meet different test requirements

  • The Tensile Tester is controlled by micro-computer with menu interface, PVC operation panel and large LCD display

  • Intelligent designs of over-travel protection, overload protect, automatic position reset and power failure memory for safe test operation

  • Professional operating software support statistical analysis of group specimens, superposition analysis of test curves and historical data comparison functions

Test Principle

The pre-conditioned specimen is mounted between two grips, which move in relative direction during the test. The signals of force and displacement changes are separately recorded by the load cell fixed on the driven grip and embedded displacement transducer. The tensile strength, tear strength and elongation rate can be obtained by further calculation.

This Tensile Tester conforms to many national and international standards:

ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB/T 1130

Technical Specifications

Items

Specifications

Test Range

500N, 50N (one of them is available)

Accuracy

<0.5% of reading value

Number of Specimens

1

Test Speed

50, 100, 150, 200, 250, 300, 500 mm/min

Specimen Width

30 mm (Standard Grip)

50 mm (Optional Grip)

Stroke

1000 mm

Instrument Size

450mm(L) x 450mm(W) x 1410mm(H)

Power Supply

AC 220V 50 Hz

Net Weight

68 kg
