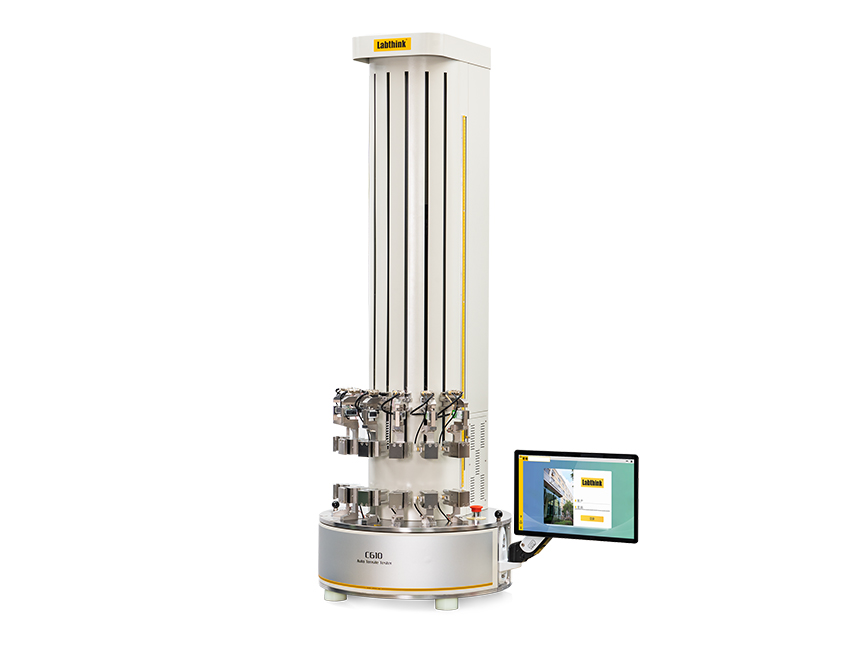

Auto Tensile Tester

Auto Tensile Tester
Auto Tensile Tester
Product Code : XLW(EC)
Brand Name : Labthink
Product Description

Auto Tensile Tester

XLW (EC) Auto Tensile Tester for Soft Packaging can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and low speed unwrapping force as well as other performance of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminum foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.

This instrument imitates to manifold standards including :

ASTM E4, ISO 37, ASTM D1938, ASTM D882, ASTM F88, ASTM D3330, ASTM F904, JIS P8113, GB/T 1040.1-2006, GB 8808, GB/T 1040.3-2006, GB/T 1040.2-2006, GB/T 1040.4-2006, GB/T 4850-2002, GB/T 1040.5-2008, GB/T 17200, GB/T 12914-2008, GB/T 7122, GB/T 16578.1-2008, GB/T 2791, GB/T 2792, GB/T 2790, QB/T 2358, QB/T 1130, GB/T 17590

Applications :

This tool is armed with more than 100 holds for tests of greater than 1000 substances. And customization is also obtainable for special substances tests. Instances of instrument applications:

Basic Applications :

  • Test of Tensile Forte and Elongation Rate
  • Shearing Test
  • Test of Ductile Strength at Break
  • Heatseal Strength Test
  • Tear Fighting Test
  • 90 Degree Peel Test
  • 180 Degree Peel Test
  • Tensile Forte Test at Distinct Elongation

Extended Applications : (Additional Fittings Required)

  • Puncture Examination of Hypodermic Needles in False Skin
  • Puncture Examination of Films
  • Puncture Examination of Infusion Bags
  • Puncture/Pullout Examination of Lithe Rubber Closures
  • Opening Confrontation Test of Joint Covers
  • Tear Test of ZD - Kind Caps
  • Opening Force Examination of Oral Liquid Caps
  • Puncture/Pullout Examination of Oral Liquid Caps
  • 90 Degree Pullout Examination of Infusion Bag Caps
  • Pullout Examination of Infusion Bag Caps
  • 23 Degree Pullout Examination of Bottle Caps
  • Puncture/Pullout Examination of Bottle Caps or Rubber Closures
  • 90 Degree Peel Examination of Adhesive Tapes
  • Tear Resistance Examination of Adhesive Binding Books
  • 90 Degree Peel Examination of Water-soluble Plasters
  • Tear Confrontation Test of Adhesives
  • Adhesive Strength Examination (soft)
  • Adhesive Strength Examination (hard)
  • Peel Examination of Elastic Tube Caps
  • Removal Force of Pipes and Pipe Joints
  • Pullout Test of Cosmetic Brush Hair
  • Pullout Examination of Tooth Brush Hair
  • Tensile Forte of Ropes at Break
  • Opening Power Examination of Jelly Cups and Yogurt Cups
  • Peel Examination of Cup Films
  • Pullout Examination of Rubber Stoppers
  • 45 Degree Peel Examination of Bottle Membranes
  • Tensile Forte of Sealing Bags
  • Peel Examination of Magnetic Cores
  • 90 Degree Peel Examination of Magnetic Cards
  • Tear Confrontation of Heat Sealing Films
  • Unravelling Power of Protection Films
  • Peel Test of Issue Paper
  • Tear Test by Trouser Method
  • Unwrapping Power of Adhesive Tapes
  • Compressive Fight of Plastic Bottles
  • 20 Degree Peel Examination
  • 135 Degree Peel Examination of Plugs
  • Peeling Grips of Fluctuating Rollers
  • Eccentric Grips
  • Wide Example Grips
  • Japanese Example Grips
  • British Example Grips
  • Tensile Forte of Contact Lenses at Disruption
  • Compression Fight of Sponge
  • Compression Fight of Jelly Cups
  • Compression Fight of Package

Features :

  • Better than 0.5% of full scale effectively ensures accurate test results
  • Support bidirectional testing modes including stretching and compression and test speed could be adjusted freely
  • 8 independent test modes are available, including tensile strength, peeling force, tearing force, heat sealing and other performance test.
  • Different test range of load cells and 7 distinct test speeds to meet different test requirements
  • Pneumatic clamping system provides the even clamping force for specimen to ensure the accuracy of test results
  • Intelligent projects of over-travel defense, automatic position reset, overload protect for harmless test operation
  • Professional operating software provision statistical examination of group samples, and export test consequences in dissimilar units
  • Support LystemTM Lab Data Sharing System for unchanging and methodical organization of test fallouts and test reports

High-end

  • ERT-01 uses Labthink’s modern embedded computer control arrangement that offers better presentation than outdated single chip system.
  • Entrenched computer control scheme offers safer and more dependable data organization as well as test process
  • The system using Windows operating interface can be conveniently operated by a screen, a mouse and a keyboard for suitable test process and data display
  • The system is armed with four USB ports, scanning port and dual internet ports for suitable output, input, and data transfer

Standard Configurations :

  • Professional Software, Mainframe, LCD Monitor, Mouse, Universal Grips, Keyboard, and Pneumatic Clamping System

Optional Parts :

  • Test Plate, Standard Pressure Roller, Customized Grips, Sample Cutter and Printer (well-matched with PCL3 language)

Note :

  • The gas supply port of this instrument is Φ4mm PU Tubing;
    Customers will need to prepare for gas supply.

Specification :

Load Cell Capacity

500 N (standard) 50 N (optional)

Accuracy

Better than 0.5% FS

Test Speed

Forward 100, 50, 150, 200, 250, 300, 500 mm/min
Backward 50, 100, 150, 200, 250, 300, 500 mm/min

Number of Specimens

1

Specimen Width

30 mm (Standard Grip)

50 mm (Optional Grip)

Clamping Way

Pneumatic Specimen Clamp

Gas Supply

Air (outside of supply scope)

Gas Supply Pressure

0.5 MPa ~ 0.7 MPa

Stroke

950 mm

Instrument Dimension

450 mm (L) x 450 mm (W) x 1410 mm (H)

Power Supply

AC 220V 50Hz

Net Weight

70 kg

Standards :

Auto Tensile Tester for Soft Packaging imitates to many values with: ASTM E4, ASTM D882, ASTM ASTM D3330, D1938, ASTM F904, ASTM F88, GB 8808, JIS P8113.
