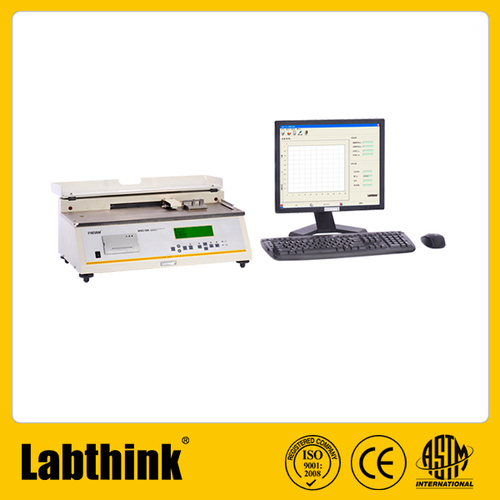

Films Inclined Coefficient of Static Friction Testing Machine

Films Inclined Coefficient of Static Friction Testing Machine
Films Inclined Coefficient of Static Friction Testing Machine
Send Inquiry
Product Code : COF-P01
Brand Name : Labthink
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 2000 - 20000 USD ($)
Product Specifications
  • Humidity
  • 20%RH ~ 70%RH
  • Test Range
  • 0° ~ 85°
  • Temperature
  • 23±2°C
  • Dimensions
  • 440 mm (L) x 305 mm (W) x 200 mm (H)
  • Power Supply
  • 220VAC 50Hz / 120VAC 60Hz
  • Number of Specimens
  • 1
  • Usage
  • Inclined Surface COf Testing Instrument
  • Machine Weight
  • 20kg
Product Description
COF-P01 Films Inclined Coefficient of Static Friction Testing Machine   is used to measure the static coefficient of friction on a inclined surface of paper, cardboard, plastic films, sheets, and conveyor belt and etc.

Standards:

ASTM D202, ASTM D4918, TAPPI T815

Features:

  • The instrument is professionally applicable to the determination of static coefficients of friction of specimens on the inclined surface

  • The functions of freely changeable angular velocity and automatic plane reset support combinations of non-standard test conditions

  • The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors

Applications:

1. Films
2. Paper and Paperboard
3. Aluminum and Silicon Sheets
4. Textiles and Nonwovens

Specifications

COF-P01

Angle Range

0° ~ 85°

Accuracy

0.01°

Angular Velocity

0.1°/s ~ 10.0°/s

Specifications of Sled

1300 g (standard)

235 g (optional)

200 g (optional)

Customization is available for other masses

Ambient Conditions

Temperature: 23±2°C

Humidity: 20%RH ~ 70%RH

Instrument Dimension

440 mm (L) x 305 mm (W) x 200 mm (H)

Power Supply

AC 220V 50Hz

Net Weight

20 kg



Trade Information
  • FOB Port
  • Jinan
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Standard Veneer Case
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, CE
