Electronic Gas Permeability Analyzer
10000.00 - 130000.00 USD ($)/Set
Product Details:
- Humidity 0-100% RH
- Number of Specimens 3 with independent results
- Specimen Size 97 mm Millimeter (mm)
- Temperature 5-95 Celsius (oC)
- Test Range 0.05~50,000 cm3/m2/24h/0.1MPa
- Usage Gas Permeability Testing
- Machine Weight 76kg Kilograms (kg)
- Click to View more
X
Electronic Gas Permeability Analyzer Price And Quantity
- 10000.00 - 130000.00 USD ($)/Set
- 1 Set
Electronic Gas Permeability Analyzer Product Specifications
- 0-100% RH
- Gas Permeability Testing
- 5-95 Celsius (oC)
- 76kg Kilograms (kg)
- Micro Computer Controlled
- 3 with independent results
- 97 mm Millimeter (mm)
- 0.05~50,000 cm3/m2/24h/0.1MPa
Electronic Gas Permeability Analyzer Trade Information
- Jinan
- 10 Set Per Month
- 7 Days
- Standard Veneer Case
- ISO 9001, CE
Product Description

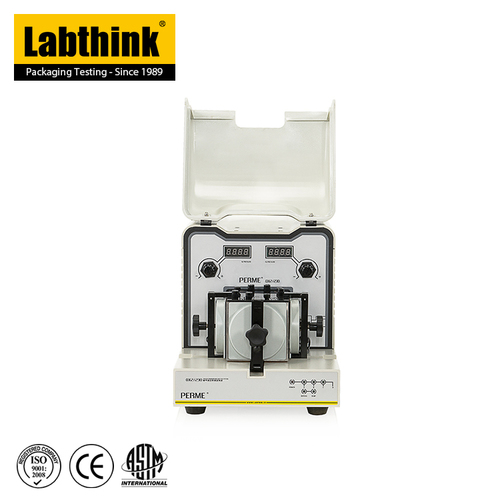

Electronic Gas Permeability Analyzer
Electronic Gas Permeability Analyzer is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate as well as solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, composite films, high barrier materials, sheeting and aluminum foils.
Electronic Gas Permeability Analyzer conforms to the following standards:
ISO 15105-1, ISO 2556, GB/T 1038-2000, ASTM D1434, JIS K7126-1, YBB 00082003
Application:
- Electronic Gas Permeability Analyzer is applicable to the determination of gas permeability of:
- Films
- Sheeting
- Various Gases
- Inflammable, Explosive Gases
- Biodegradable Films
- Materials for Aerospace Usage
- Paper and Paper Board
- Paint Films
- Glass Fiber Cloth and Paper
- Gas transmission rate, solubility coefficient, diffusion coefficient and permeability coefficient of the specimen could be obtained at one operation
- 3 distinct or equivalent specimens could be tested individually with independent test results at one operation
- Wide range and high precision temperature and humidity control to meet various test conditions
- The instrument comes with two test modes: proportional mode and standard mode
- Test range could be extended based on user requirements to test the materials with high permeability
- Test results could be easily obtained even at extreme condition by data fitting function, which could work at any temperature
| Specifications | VAC-V2 |
| Test Range | 0.05~50,000 cm3/m2·24h·0.1MPa (standard volume) |
| At least | 500,000 cm3/m2·24h·0.1MPa (extended volume) |
| Number of Specimens | 3 (with independent test results) |
| Vacuum Resolution | 0.1 Pa |
| Vacuum Degree of Test Chamber | <20 Pa |
| Temperature | 5oC ~ 95oC |
| Accuracy | +0.1oC (standard) |
| Humidity | 0%RH, 2%RH ~ 98.5%RH, 100%RH (humidity generator is outside of supply scope) |
| Accuracy | ±1%RH |
| Specimen Size | 97 mm |
| Test Area | 38.48 cm2 |
Labthink instruments have been widely used and recognized by more than 6,000 scientific institutional laboratories, inspection organizations, and universities and corporate quality control departments.
Labthink is dedicated to providing professional consulting, testing instruments, support services, and quality assurance solutions for packaging in various fields.
