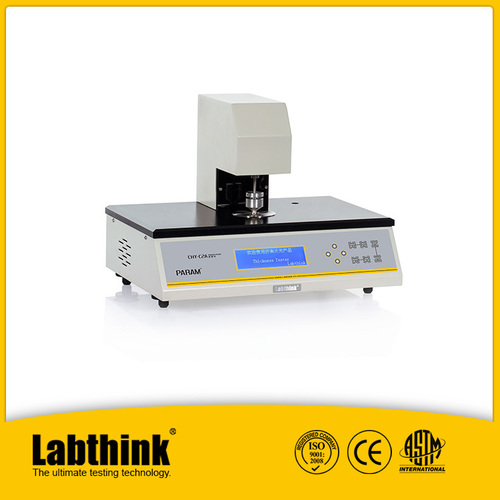

Digital Plastic Film and Paper Thickness Gauge

Digital Plastic Film and Paper Thickness Gauge
Digital Plastic Film and Paper Thickness Gauge
Product Code : CHY-CA
Brand Name : Labthink
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 2000 - 20000 USD ($)
Product Description
CHY-CA Digital Plastic Film and Paper Thickness Gauge   is designed with automatic specimen feeding feature, which is used for thickness test of specimens within 12mm.

Test method: it is based on the mechanical contacting method, which effectively ensures standard and accurate test dat.

Applications: it is applicable to thickness test of plastic films, sheets, diaphragms, paper, foils, silicon wafers and other materials within specified range.

Standards:  ISO 4593, ISO 534, ISO 3034, ASTM D374, ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702

Specifications

CHY-CA Digital Plastic Film and Paper Thickness Gauge

Test Range

0~2 mm (standard)
0~6 mm, 12 mm (optional)

Resolution

0.1 μm

Test Speed

10 times/min (adjustable)

Test Pressure

17.5±1 KPa (film)
50±1 KPa (paper)

Contact Area

50 mm2 (film)
200 mm2 (paper)
Note: Select one presser foot for film or paper; Customization is available

Specimen Feeding Interval

0 ~ 1000 mm

Specimen Feeding Speed

0.1 ~ 99.9 mm/s

Instrument Dimension

461 mm (L) x 334 mm (W) x 357 mm (H)

Power Supply

AC 220V 50Hz

Net Weight

32 kg





Trade Information
  • FOB Port
  • JInan
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Standard Veneer Case
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, CE
