Home » Products » Tensile Strength Testers » Tensile Testing Instrument of Bottle Caps

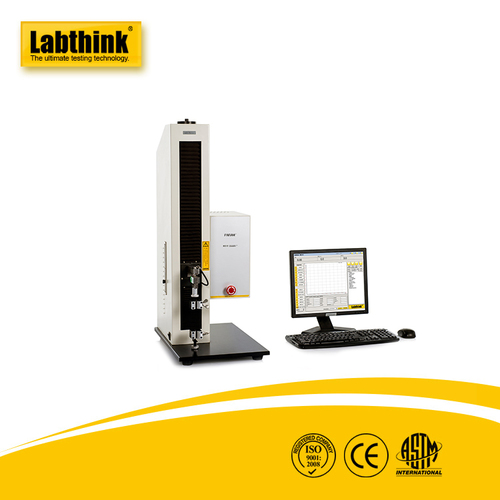

Tensile Testing Instrument of Bottle Caps

Tensile Testing Instrument of Bottle Caps
Tensile Testing Instrument of Bottle Caps
Send Inquiry
Product Code : XLW(B)
Brand Name : Labthink
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 2000 - 20000 USD ($)
Product Specifications
  • Dimensions
  • 450 mm (L) x 580 mm (W) x 1100 mm (H) Millimeter (mm)
  • Number of Specimens
  • 1
  • Power Supply
  • 220V 50/60HZ
  • Test Range
  • 0-500N
  • Usage
  • Tensile Strength Tester
  • Machine Weight
  • 60kg Kilograms (kg)
  • Test Speed
  • 50-500mm/min
  • Test Width
  • 50mm Millimeter (mm)
  • Test Stroke
  • 600mm
  • Control Mode
  • manual
Product Description

ASTM Tensile Testing Instrument of Bottle Caps is specially and professionally designed for tensile test of flexible materials, such as plastic films, foils, sheeting and other materials.

ASTM Tensile Testing Instrument of Bottle Caps conforms to multiple national and international standards:
ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113

Application:

Equipped with more than 100 grips, ASTM Tensile Testing Instrument of Bottle Caps can used for various force test of more than 1000 materials. Example of Labthink Tensile Tester Applications:

  • Shearing Test
  • Tensile Strength Test and Elongation Rate Test
  • Tensile Strength at Break Test
  • Tear Resistance Test
  • Heat Seal Strength Test
  • 90 Degree Peel Test
  • 180 Degree Peel Test
  • Picture test for medical Packaging

Features:

  • Different ranges of load cells and 7 distinct test speeds to meet different test requirements
  • Controlled by micro-computer with menu interface, PVC operation panel and large LCD display.
  • Intelligent designs of over-travel protection, overload protection, automatic position reset and power failure memory for safe test operation
  • Professional operating software
  • RS232

Specification:

Items

XLW(B)

Load Cell Capacity

100 N, 200 N, 500 N (one of them is available)

Accuracy

1% of reading value

Test Speed

50, 100, 150, 200, 250, 300, 500 mm/min

Stroke

600 mm

Power Supply

AC 220V 50Hz



Trade Information
  • FOB Port
  • Jinan
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Standard Veneer Case
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, CE
