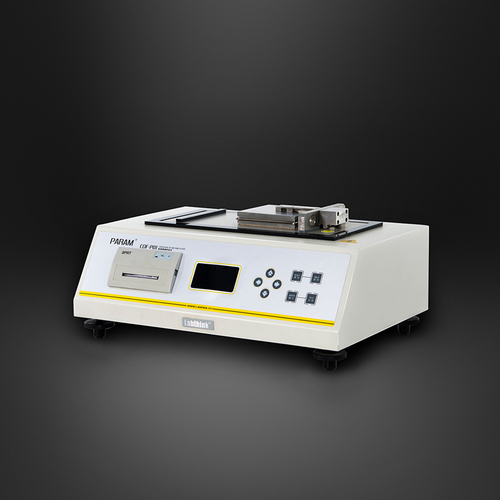

COF Tester

COF Tester
COF Tester
Product Code : MXD-01A
Brand Name : Labthink
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 2000 - 20000 USD ($)
Product Specifications
  • Dimensions
  • 575 mm (L) x 310 mm (W) x 208 mm (H) Millimeter (mm)
  • Humidity
  • 20%RH ~ 70%RH
  • Temperature
  • 10°C ~ 40°C Celsius (oC)
  • Usage
  • Coefficient of friction testing
  • Capacity
  • 0-5N Fluid Ounce (oz)
  • Machine Weight
  • 34kg Kilograms (kg)
  • Test Speed
  • 150 mm/min
  • Test Stroke
  • ≥130 mm
Product Description
MXD-01ACOF Tester Price is strictly based on ASTM D1894 standard, and is professionally applicable to the determination of static and kinetic coefficients of friction of plastic films, sheets, rubber, paper and paper board, PP woven bags, fabrics, metal-plastic composite belts for communication cables, convey belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires. By testing the frictional properties of materials, the technical indexes could be controlled to meet requirements for production. Besides, the instrument can be used to measure smoothness of cosmetics, eye drops and other daily products.

COF Tester Price conforms to the standard: ASTM D1894

LSSD-01COF Tester Price is applicable to the determination of:

Basic Applications

  • Films
  • Paper and Paper Board
  • Textiles, Non-woven Fabrics and Woven Bags
  • Rubber
  • Aluminum Foils, Aluminum Foil Composite Films, and Metal Products

Printing Matters

  • Static and Kinetic coefficients of friction can be tested simultaneously
  • The functions of automatic delay timing and automatic COF zeroing ensure enough touching time between tested specimens
  • The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors
  • The instrument is controlled by micro-computer with LCD, PVC operation panel and menu interface, which is convenient for customers to test or view the test data
  • Top quality parts and components made by world famous brands are used to ensure reliable overall product performance
  • Professional operating software supports the automatic judgment of smoothness status, and statistical analysis of group specimen test results

Specifications

MXD-01A COF Tester Price

Capacity Range

0 ~ 5 N

Accuracy

1% FS

Stroke

130 mm

Mass of Sled

200 g (500 g optional)

Customization is available for other masses

Test Speed

150 mm/min

Environment Condition

Temperature: 10oC ~ 40oC

Humidity: 20%RH ~ 70%RH

Power Supply

AC 220V 50Hz

Instrument Dimension

575 mm (L) x 310 mm (W) x 208 mm (H)

Net Weight

34 kg

Labthink instruments have been widely used and recognized by more than 6,000 scientific institutional laboratories, inspection organizations, and universities and corporate quality control departments.

Labthink is dedicated to providing professional consulting, testing instruments, support services, and quality assurance solutions for packaging in various fields.

Trade Information
  • FOB Port
  • Jinan
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Standard Veneer Case
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, CE
