ASTM F1294 Water Vapor Permeability tester for plastic films and sheeting

ASTM F1294 Water Vapor Permeability tester for plastic films and sheeting
ASTM F1294 Water Vapor Permeability tester for plastic films and sheeting
Send Inquiry
Product Code : W3/230
Brand Name : Labthink
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price Range
  • 5000.00 - 50000.00 USD ($)/Set
Product Specifications
  • Test Range
  • 0.01 ~ 40 g/m2/24h (Standard)
  • Humidity
  • 0%RH, 35%RH ~ 90%RH, 100%RH
  • Number of Specimens
  • 3
  • Power Supply
  • 220VAC 50Hz / 120VAC 60Hz
  • Temperature
  • 15-55 Celsius (oC)
  • Specimen Size
  • 108 mm x 108 mm Millimeter (mm)
  • Machine Weight
  • 36 kg Kilograms (kg)
  • Control Mode
  • Micro Computer controlled
Product Description

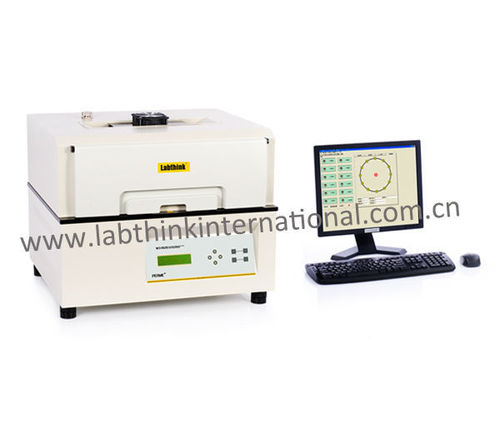

Precision Water Vapor Permeability Tester of Packaging Film Barriers.

The W3/230 Water Vapor Pemeability Tester utilises the sensitive and stable infrared sensor for absolute moisture measurement. This Water Vapor Permeation Testing Instrument offers a wide measurement range of 0.1 1000g/m day and precision temperature, humidity and flow control. Providing accurate and repeatable results for research and development testing of water transmission rate (wvtr) in both current and newly formulated packaging film materials and fast testing for Quality Control.





Water Vapor



Measurement range (Film):

0.1 ~ 1000 g/m2 ·24h

Measurement range(Packages:

0.0001 ~ 0.2 g/pkg ·d

Test temperature range:

15 °C ~ 55 °C

Test RH range:

0%RH, 35%RH ~ 90%RH, 100%RH


690 mm (L) x 350 mm (W) x 360 mm (H)


70 kg

Features and Benefits

  • Easy to use operator interface
  • Simple to operate due to the high degree of automation
  • Fast and accurate test results
  • Broad testing range covering low and high permeability
  • Automatic equilibrium detection
  • Automatic temperature control
  • Easy set-up of test parameters and sample data
  • Complete traceability in test documentation, data logging and error reports
  • Easy to use test sample holders
  • RS232 interface for communication with PC
  • Built-in printer
  • Low degree of maintenance


  • Films
  • Barriers on SiOx substrate
  • Metallized packaging foils
  • Impermeable fabrics
  • Surgical and hygienic membrance
  • PUR-coated farbrics for nursing
  • Roofing felt and roofing water vapour barrier
  • Stable fibre coatings and coated paper
Trade Information
  • FOB Port
  • Jinan
  • Supply Ability
  • 10 Set Per Week
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Standard Veneer Case
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, CE
