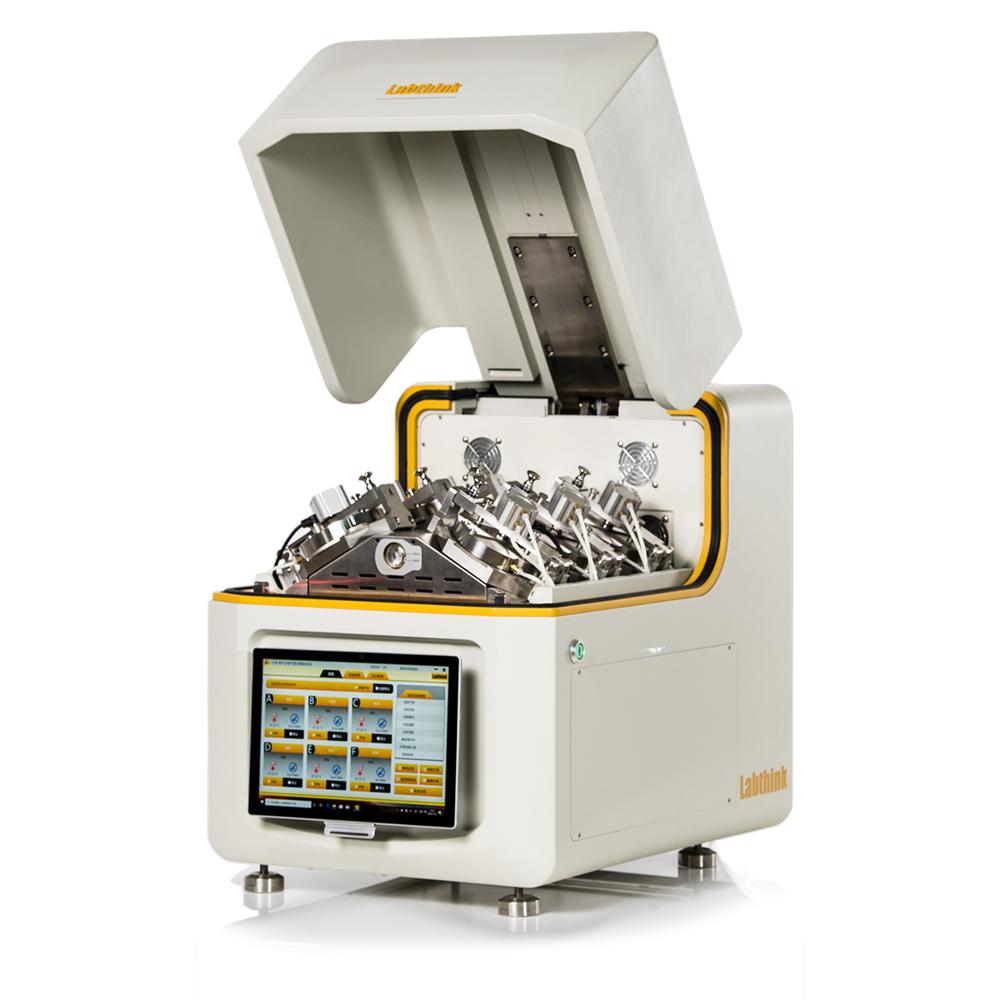

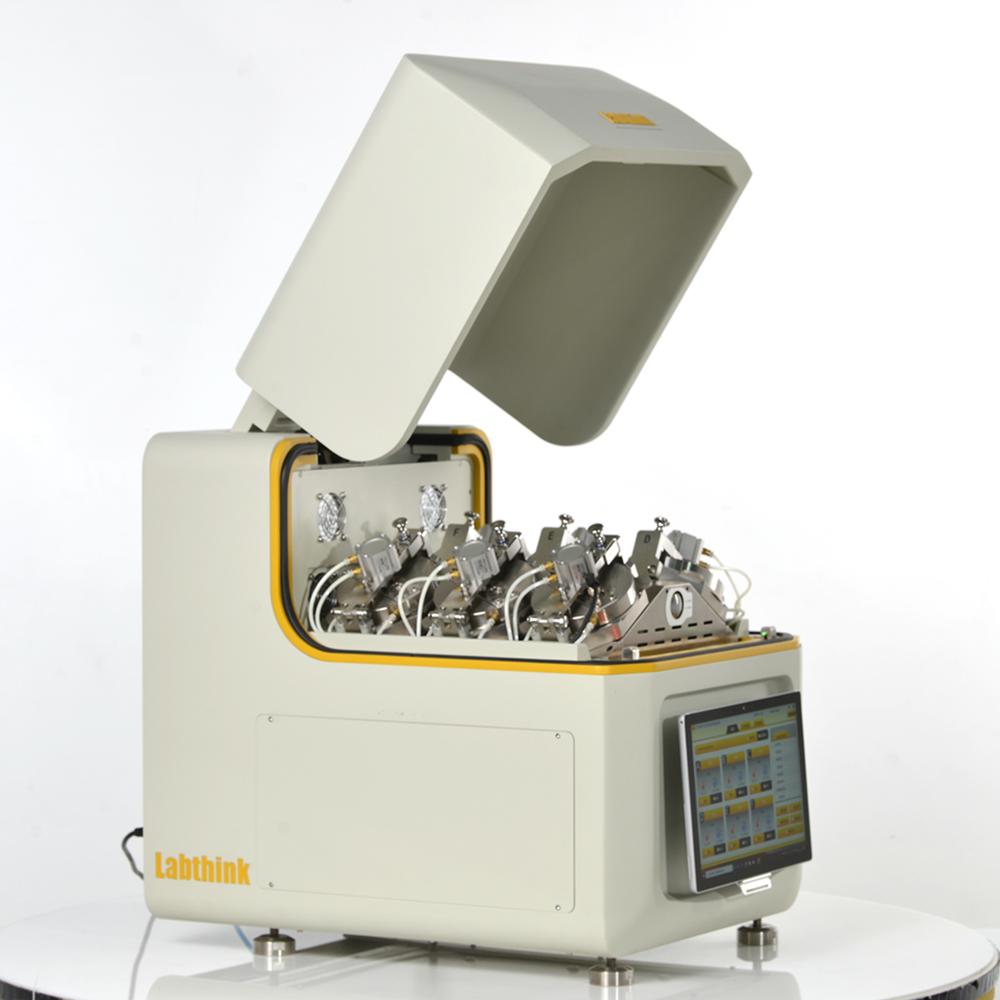

C406H Oxygen Water Vapor Transmission Rate Test System

50000.00 USD ($)/Unit

Get a Price/Quote

Product Details:

Equipment Type Oxygen and Water Vapor Transmission Rate Test System
Port Size G1/8
Accuracy 0.01 g/(m224h), 0.01 cm/(m224h0.1MPa)
Power Supply AC 220V, 50Hz
Display Type 7-inch Color Touch Screen
Specimen Size 97 mm (standard), custom specimen carrier optional
Operating Voltage 220V AC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

C406H Oxygen Water Vapor Transmission Rate Test System Price And Quantity

Price 50000.00 USD ($)/Unit
Minimum Order Quantity 1 Unit

C406H Oxygen Water Vapor Transmission Rate Test System Product Specifications

Display Type 7-inch Color Touch Screen
Power Supply AC 220V, 50Hz
Specimen Size 97 mm (standard), custom specimen carrier optional
Operating Voltage 220V AC
Mounting Type Bench-top
Humidity 35%~90% RH (controlled)
Equipment Type Oxygen and Water Vapor Transmission Rate Test System
Capacity High throughput test capability
Test Speed Adjustable
Control Mode Microcomputer control, touch screen operation
Accuracy 0.01 g/(m224h), 0.01 cm/(m224h0.1MPa)
Port Size G1/8
Application Testing permeability of packaging film, composite films, laminated films, sheets, and containers
Features Automatic temperature and humidity control, multi-lingual interface, data storage, real-time trend chart, password protection
Test Width 50 mm
Number of Specimens 3 (independent test chambers)
Temperature 15C ~ 55C
Usage Laboratory, research, quality control
Machine Weight 95 kg
Frequency 50 Hz
Test Range 0.01~1000 g/(m224h), 0.01~1000 cm/(m224h0.1MPa)
Gas Pressure 0.6 MPa
Resolution 0.001 g/(m224h), 0.001 cm/(m224h0.1MPa)
Test Stroke 0~150 mm
Max Height 450 mm
Measuring Range 0.01~1000 g/(m224h) for WVTR; 0.01~1000 cm/(m224h0.1MPa) for OTR
Automation Grade Fully automatic
Response Time 60 s
Interface Type USB, Ethernet

C406H Oxygen Water Vapor Transmission Rate Test System Trade Information

Delivery Time 7 Days

Product Description

Unlock premier precision in permeability testing with the C406H Oxygen Water Vapor Transmission Rate Test System-now available as a hot deal exclusively from a grand exporter, manufacturer, and supplier in China. Procure this stellar system featuring advanced coulometric and infrared sensors, high-throughput capacity with three independent test chambers, and automatic calibration. Its stainless steel chamber, microcomputer control, and real-time data output ensure reliable, high-speed measurements. Designed for accurate quality control and research on packaging films, it's the ultimate choice for laboratories seeking accurate and efficient testing solutions.

Usage & Application Excellence of C406H System

The C406H Oxygen Water Vapor Transmission Rate Test System is engineered for testing the permeability of packaging films, composite and laminated materials, sheets, and containers. With its fully automatic operation, adjustable test speed, and multi-lingual touch screen, this premier equipment streamlines the process for research, quality control, and laboratory environments. Employing both equal and differential pressure methods, it assures superior accuracy and repeatability, making it indispensable for demanding analytical tasks and compliance standards.

Domestic Market, Certification & Payment Flexibility

Dominating the domestic market, the C406H system is thoroughly backed by relevant industry certifications, ensuring stringent quality adherence. Buyers can rate their outlay confidently, thanks to flexible payment terms and streamlined logistics. A variety of payment methods is supported to accommodate procurement needs. Efficient shipping and trusted after-sales support make delivery seamless and dependable, whether outfitting a single lab or equipping an entire research facility.

FAQ's of C406H Oxygen Water Vapor Transmission Rate Test System:

Q: How does the C406H Oxygen Water Vapor Transmission Rate Test System operate?

A: The C406H system operates using a dual sensor approach-coulometric for testing oxygen transmission rate (OTR) and infrared for water vapor transmission rate (WVTR). It uses high-purity nitrogen or air as carrier gas and supports both equal and differential pressure testing modes for optimal accuracy.

Q: What types of materials can be tested with the C406H system?

A: This equipment is specifically designed for analyzing packaging films, composite films, laminated films, sheets, and containers. Its high sensitivity allows precise measurement of both oxygen and water vapor permeability across a variety of industrial materials.

Q: Where can the data from the C406H system be exported?

A: Test results and analysis can be exported in multiple formats, including CSV, PDF, and Excel, via USB or Ethernet interfaces, making data sharing and reporting efficient for laboratory and quality assurance teams.

Q: What advantages does automatic calibration offer for users?

A: The auto-calibration and built-in test leak features ensure each test starts with verified accuracy, reducing downtime and user intervention. This delivers consistent, reproducible results, boosting confidence in daily laboratory operations.

Q: How is the operating environment controlled during tests?

A: The C406H system offers fully automatic control of both temperature and humidity within the testing chamber, maintaining optimal conditions (15-55C, 35-90% RH) to guarantee reliable and repeatable results for every specimen tested.
