Home » Products » Coefficient of Friction Testers » Coefficient of Friction Testing Device

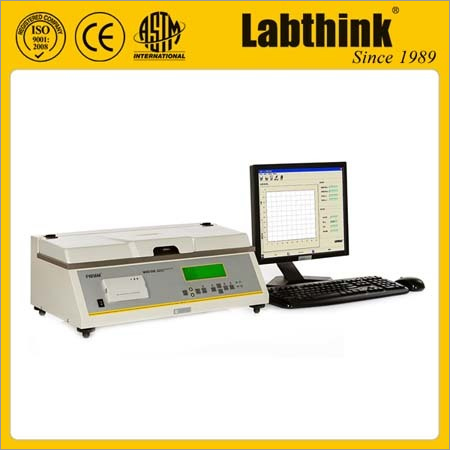

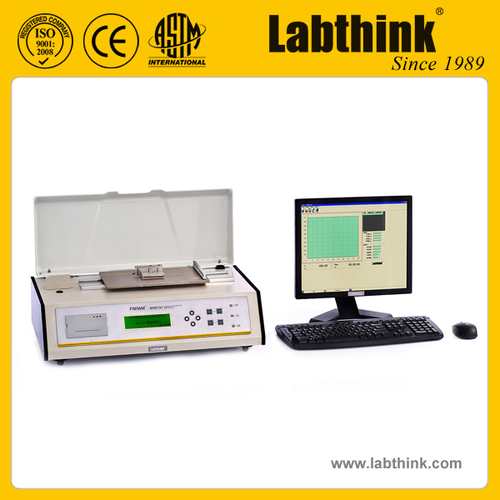

Coefficient of Friction Testing Device

Coefficient of Friction Testing Device
Coefficient of Friction Testing Device
Send Inquiry
Product Code : MXD-01
Brand Name : Diamon
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 2000 - 20000 USD ($)
Product Specifications
  • Dimensions
  • 470 mm (L) x 310 mm (W) x 200 mm (H) Millimeter (mm)
  • Test Range
  • 0 ~ 5 N
  • Power Supply
  • 220VAC 50Hz / 120VAC 60Hz
  • Number of Specimens
  • 1
  • Temperature
  • 10-40 Celsius (oC)
  • Humidity
  • 20%RH ~ 70%RH
  • Usage
  • COF Testing
  • Machine Weight
  • 31kg Kilograms (kg)
  • Test Speed
  • 100 mm/min
  • Test Stroke
  • 10 mm + 60 mm
Product Description
Coefficient of Friction Testing Device is designed and manufactured by Labthink Instruments Company, which is focus on helping customers succeed, employees grow and brands gain respect. The company has more than 50 international distributors and more than 30 international service providers.

Coefficient of Friction Testing Device is apply to static and kinetic coefficient of friction measurement of sheeting products, such as thin films, laminated materials, paper and paperboard, foils.

Coefficient of Friction Testing Device applies to ASTM D1894

Technical Specifications

Capacity Range

0 ~ 5 N

Accuracy

1% FS

Stroke

 130 mm

Mass of Sled

200 g (500 g optional)

Customization is available for other masses

Test Speed

150 mm/min

Environment Condition

Temperature: 10 °C ~ 40 °C

Humidity: 20%RH ~ 70%RH

Power Supply

AC 220V 50Hz

Instrument Dimension

575 mm (L) x 310 mm (W) x 208 mm (H)

Net Weight

34 kg

Trade Information
  • FOB Port
  • Jinan
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Standard Veneer Case
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, CE
