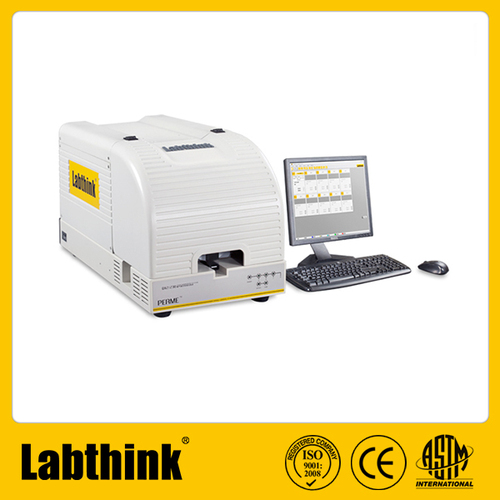

Plastic Bags Oxygen Permeability Testing Instrument

Plastic Bags Oxygen Permeability Testing Instrument
Plastic Bags Oxygen Permeability Testing Instrument
Send Inquiry
Product Code : OX2/231
Brand Name : Labthink
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 2000 - 20000 USD ($)
Product Description
OX2/231 Oxygen Permeability Tester utilizes the coulometric sensor method to test the oxygen transmission rate of flexible films, sheets, foils and packages. It can test 3 specimens in one operation with average results.

Principle:

The pre-conditioned specimen is mounted between the upper and lower chambers at ambient atmospheric pressure. One chamber contains oxygen and the other chamber is slowly purged by a stream of nitrogen. Due to the concentration difference between the two chambers, oxygen molecules permeate through the specimen into the nitrogen side and are taken to the coulometric sensor where proportional electrical signals are generated. The oxygen transmission rate is then obtained by analyzing and calculating the signals. For package samples, high purity nitrogen flows inside the package, and oxygen flows outside.

Standards:

ISO 15105-2, ASTM D3985, ASTM F2622, ASTM F1307, ASTM F1927, JIS K7126-2

Features:

  • Tests 3 equivalent specimens at one operation and exports test results in average value.
  • 2 test modes for both films and packages, and accessories for package test are available for customization.
  • Equipped with constant temperature and humidity control devices (optional parts) to meet different test requirements.
  • Reference film for fast calibration to ensure accurate and universal test data.
  • Test data could be automatically and safely saved by the function of power failure protection.
  • The instrument is controlled by micro-computer with LCD, menu interface and PVC operating panel, which could conveniently export test data, test results and test curves.

Specifications:

Specifications Film Test Package Test (customization available)
Test Range 0.01~1000 cm 3/m2/·d (standard) 0.0001~10 cm3//pkg·d (standard)
0.1~10,000 cm3//m2/·d (optional)
Number of Specimens 1~3
Resolution 0.01 cm/md 0.0001 cm3/pkgd0.0001 cm3/pkgd
Temperature Range 15°C~55°C (optional) /
Temperature Accuracy ±0.1°C /
Humidity Range 0%RH, 15%RH~90%RH, 100%RH (optional)
Humidity Accuracy ±1%RH
Test Gas O2 and air (outside of supply scope)
Test Area 50 cm2 /
Thickness 3 mm (customization is available for other thickness) /
Specimen Size 108 mm x 108 mm Test in 100% O2: Specimen should be smaller than DIA 120 mm and lower than 360 mm
Test in the Air: No size limitation
Bottles: the inner diameter should be bigger than DIA 8 mm, outer diameter should be smaller than DIA 42 mm (Standard)
Bags or Boxes: Supported by accessories
Carrier Gas High purity nitrogen with more than 99.999% concentration (outside of supply scope)
Gas Supply Pressure  0.28 MPa
Port Size 1/8 inch copper tubing
Instrument Dimension 670 mm (L) x 410 mm (W) x 310 mm (H) 670 mm (L) x 410 mm (W) x 630 mm (H)
Power Supply AC (85~264)V (47~63)Hz
Net Weight 48 kg 50 kg

Applications:

1. Films
2. Sheeting
3. Packages
4. Package Caps
5. Solar Back-Sheets
6. Plastic Pipes
7. Contact Lenses
8. Fuel Tanks of Cars
9. Battery Plastic Shell
10. Red Wine Bottles
11. Battery Plastic Shell
12. Soft Plastic Infusion Bottles
13. Warm Paste Packages
