Leak Testing Equipment

Leak Testing Equipment
Leak Testing Equipment
Product Code : MFY-01
Brand Name : Labthink
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 2000 - 20000 USD ($)
Product Specifications
  • Type
  • Electronic
Product Description

Labthink Provides Leak Detection Equipment and Services for Packages and Bottles

package leak Detection Equipment/ Leak Detection Device is used to measure leak property of plastic packages and conforms to ASTM D3078

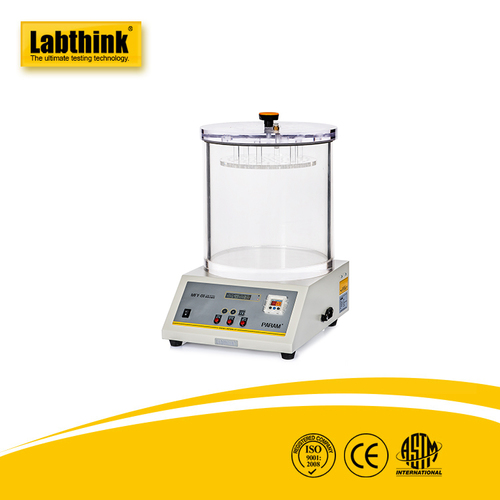

Package Leak Detection Equipment / Leak Detection Device MFY-01

Applications

Basic Applications

  • Glass bottles, pipes, cans and boxes

  • Plastic bottles, pipes, cans and boxes

  • Metal bottles, pipes, cans and boxes

  • Paper plastic composite bags and boxes

Technical Specifications

Vacuum Degree

0~ -90Kpa

Accuracy

1% of reading value

Vacuum Chamber Size

ÃŽ¦270 mm x 210 mm (H) (standard)

ÃŽ¦360 mm x 585 mm (H) (optional)

ÃŽ¦460 mm x 330 mm (H) (optional)

Characters

  • Micro computer with LCD display;
  • Digital Preset Vacuum Degree and Retention time;
  • Automatic back flushing and time termination;
  • Test chamber can be customized

Principle

Firstly submerge the specimen in the water within the vacuum chamber, and then evacuate the vacuum chamber to form differential pressure between the inside and outside of specimen. The leakage property could be obtained by observing the steady progression of bubbles from the specimen and how the specimen expands and restores to its original shape after vacuum release



Trade Information
  • FOB Port
  • Jinan
  • Payment Terms
  • Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Standard Veneer Case
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, CE
