High Precision Torsion Testing Machine

High Precision Torsion Testing Machine
High Precision Torsion Testing Machine
Send Inquiry
Product Code : NJY-20
Brand Name : Labthink
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 2000 - 20000 USD ($)
Product Specifications
  • Number of Specimens
  • 1
  • Power Supply
  • 220VAC 50Hz / 120VAC 60Hz
  • Usage
  • Bottle cap Torque testing
  • Capacity
  • 50Nm
  • Machine Weight
  • 19kg
  • Dimensions
  • 350 mm (L) x 240 mm (W) x 140 mm (H)
Product Description

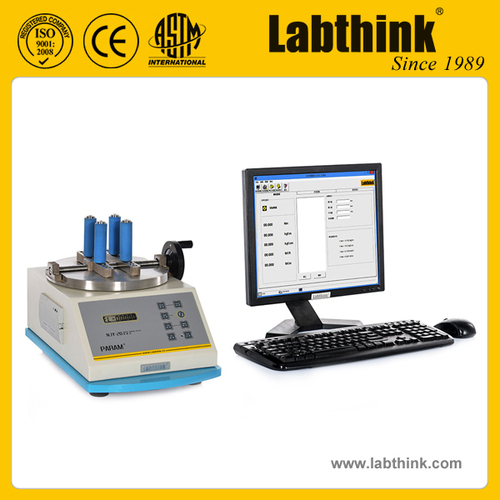

High Precision Torsion Testing Machine

are important online and offline production parameters. They can influence the transportation and consumption of products.  Cosmetics Cap Test Digital Torque Tester Manufacturers is designed to measure the open force and lock force of the caps of bottles, spout bags and flexible tube packages. Its great stability and precision makes it a necessity for the manufacturing process



High Precision Torsion Testing Machine  conforms to various national and international standards:
ASTM D2063, ASTM D3198, ASTM D3474, BB/T 0025, BB/T 0034, GB/T 17876


Application:

Basic Applications
  • Bottle Package
    Open and lock force test of the bottle caps for bottled packages for food, pharmaceuticals, e.g. beverage or tablet bottles
  • Flexible Tube Package
    Open and lock force test of flexible tube packages for food, pharmaceuticals and cosmetics, e.g. eye-drop, hand cream and shoe polish, etc.
Extended Applications
  • Screws
    Open and lock force test of the screws
  • Vacuum Flask and Vacuum Cup
    Open and lock force test of the caps of vacuum flasks and vacuum cups



Features:

         1. High Precision Torsion Testing Machine is controlled by a micro-computer with menu interface, PVC operation  panel and large LCD display

         2.2 test modes for open force and lock force

         3.Automatic retaining of peak value and recording the test results precisely

         4.Standard testing units which is convenient for data reference and comparison

         5.Intelligent designs of overload protection, automatic zeroing and error alert for safe test operation

         6.Equipped with RS232 port and micro printer port which is convenient to the data transmission and PC connection



Specification:

Items NJY-20 High Precision Torsion Testing Machine
Load Cell Capacity 20 Nm (Standard), 40 Nm (Optional), 50 Nm (Optional)
Accuracy 1% FS
Resolution 0.001Nm
Clamp Range 5 mm ~ 170 mm (Diameter)
Power Supply AC 220V 50Hz



 Our Customers:

Labthink instruments have been widely used and recognized by more than 6,000 scientific institutional laboratories, inspection organizations, and universities and corporate quality control departments.

Labthink is dedicated to providing professional consulting, testing instruments, support services, and quality assurance solutions for packaging in various fields.



Trade Information
  • Supply Ability
  • 10 Per Week
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Veneer Case
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, CE
