Home » Products » Data Processing System » Flex Durability Testing Equipment

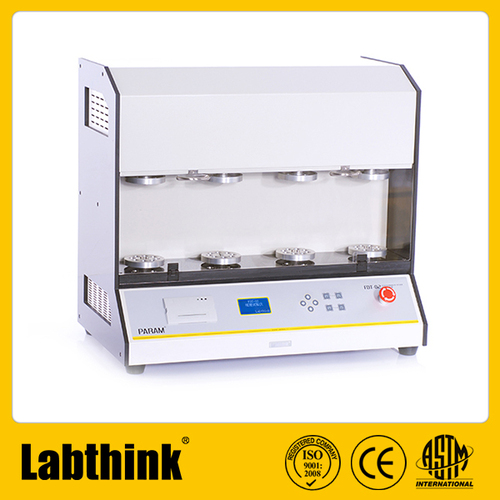

Flex Durability Testing Equipment

Flex Durability Testing Equipment
Flex Durability Testing Equipment
Send Inquiry
Product Code : FDT-02
Brand Name : Labthink
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price Range
  • 2000 - 20000 USD ($)
Product Specifications
  • Power Supply
  • 220VAC 50Hz / 120VAC 60Hz
  • Dimensions
  • 715 mm (L) x 415 mm (W) x 645 mm (H)
  • Number of Specimens
  • 4
  • Specimen Size
  • 280 mm x 200 mm
  • Usage
  • Flex Durability Testing
  • Capacity
  • 300N
  • Machine Weight
  • 85kg
  • Test Speed
  • 45 /minute
  • Test Stroke
  • 155 mm or 80 mm
  • Control Mode
  • micro computer controlled
Product Description

Flex Durability Testing Equipment Supplier    is professionally applicable to the determination of flex durability of flexible films, composite films, and coating films. The instrument can simulate the kneading and creasing behaviors of films happened during production, processing and transportation. The flex durability would be obtained by measuring the changes in number of pinholes or barrier properties after test, which could provide quantitative basis for package design and practical usage.

Features:

  • 5 standard test modes and 4 specimen stations support various combinations of non-standard test conditions
  • Quick switch between long and short strokes improves the test efficiency
  • Application of servo motor further ensures the accuracy of test results
  • Dual protection for hardware and software as well as auto reset provides a safe operating environment for customers
  • The instrument is controlled by micro-computer, with LCD, menu interface and PVC operation panel.
  • Equipped with micro-printer for convenient data transfer

Application:

Flex Durability Testing Equipment Supplier is applicable to the determination of flex durability of:

Basic Applications

Flexible Films, Composite Films and Coating Films

Including plastic films, sheets and composite films e.g. composite films, aluminized films, aluminum plastic composite films, nylon films and coating films for food or drug packages

Paper Materials

Test the flex durability of paper materials

Technical Specifications

Flex Frequency

45 /minute

Flex Angle

440° or 400°

Horizontal Stroke

155 mm or 80 mm

Number of Stations

4

Number of Specimens

1 ~ 4

Specimen Size

280 mm x 200 mm

Instrument Dimension

715 mm (L) x 415 mm (W) x 645 mm (H)

Power Supply

AC 220V 50Hz

Net Weight

85 kg

Standard:

Flex Durability Testing Equipment Supplier conforms to the standard: ASTM F392

Trade Information
  • FOB Port
  • Jinan
  • Supply Ability
  • 10 Per Month
  • Delivery Time
  • 7 Days
  • Packaging Details
  • Standard Veneer Case
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, CE
