Gradient Heat Seal Tester Equipment

2000.00 - 20000.00 USD ($)/Set

Get a Price/Quote

Product Details:

Gas Pressure 0.1 MPa ~ 0.7 MPa Pa
Temperature Room temperature ~ 250C Celsius (oC)
Port Size 8 mm PU Tubing
Power Supply 220VAC 50Hz / 120VAC 60Hz
Machine Weight 68kg Kilograms (kg)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Price And Quantity

Price Range 2000.00 - 20000.00 USD ($)/Set
Minimum Order Quantity 1 Set

Product Specifications

Gas Pressure 0.1 MPa ~ 0.7 MPa Pa
Power Supply 220VAC 50Hz / 120VAC 60Hz
Machine Weight 68kg Kilograms (kg)
Temperature Room temperature ~ 250C Celsius (oC)
Port Size 8 mm PU Tubing

Trade Information

FOB Port Jinan
Supply Ability 10 Set Per Month
Delivery Time 7 Days
Packaging Details Standard Veneer Case
Main Domestic Market All India
Certifications ISO 9001, CE

Product Description

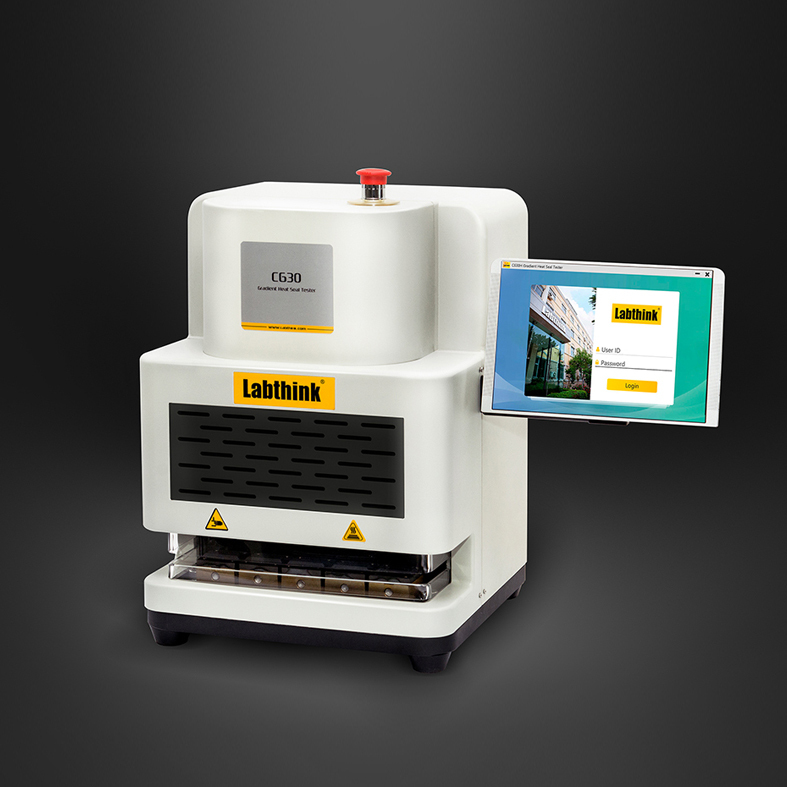

Gradient Heat Seal Tester Equipment

Labthink provided CLASSIC 513 Gradient Heat Seal Tester Equipment is used to test heat seal ability of plastic films, composite films, coated paper, and other sealing films under certain sealing speed, pressure and 5 different temperatures.

This equipment conforms to the following standards: ASTM F2029^Note2, QB/T 2358, YBB 00122003

Features:

P.I.D. temperature control
Wide range of temperature, pressure and time
Manual or pedal switch control
Test 5 groups of 2 specimens at different temperatures
5 upper sealing jaws
Equipped with micro-printer

Specifications:

Sealing Temperature	Room temperature ~ 250°C
Dwell Time	0.5~999.9 s
Temperature Accuracy	±2°C
Temperature Resolution	0.1°C
Temperature Gradient	20°C
Gas Supply Pressure	0.1 MPa ~ 0.7 MPa (outside of supply scope)
Port Size	8 mm PU Tubing
Sealing Area	40 mm x 10 mm
Number of Sealing Jaws	10 (5 x 2 groups)^Note1
