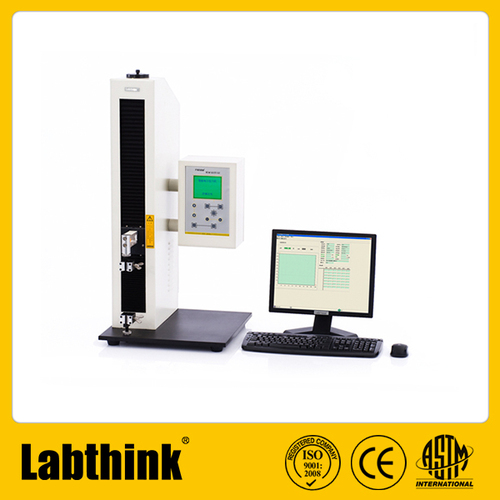

Plastic Tensile Strength Tester

Plastic Tensile Strength Tester
Plastic Tensile Strength Tester
Product Code : XLW
Brand Name : Labthink
Product Description

Plastic Tensile Strength Tester

Plastic Tensile Strength Tester  conforms to various national and international standards as follows:
ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB/T 1130, GB 8808, GB/T1040

Features:

1% of full scale effectively ensures the accuracy of test results
7 independent test modes are available, including tensile strength, peeling force, tearing force, heat seal strength and other force properties of flexible packages
Different ranges of load cells and 7 distinct test speeds to meet different test requirements
The instrument is controlled by micro-computer with menu interface, PVC operation panel and large LCD display
Intelligent designs of over-travel protection, overload protection, automatic position reset and power failure memory for safe test operation

Application:

This instrument is equipped with more than 100 grips for tests of more than 1000 materials. And customization is also available for special materials tests. Examples of instrument applications:
1.Shearing Test
2.Test of Tensile Strength and Elongation Rate
3.Test of Tensile Strength at Break
4.Tear Resistance Test
5.Heat Seal Strength Test
6.90 Degree Peel Test
7.180 Degree Peel Test

Technical Specification:


Specifications    XLW
Load Cell Capacity    100 N, 200 N, 500 N (one of them is available)
Accuracy    1% FS
Test Speed    50, 100, 150, 200, 250, 300, 500 mm/min
Number of Specimens    1
Specimen Width    30 mm (Standard Grip) 50 mm (Optional Grip)
Clamping Way    Manual Specimen Clamp
Stroke    600 mm
Instrument Dimension    450 mm (L) x 450 mm (W) x 980 mm (H)
Power Supply    AC 220V 50Hz
Net Weight    65 kg
